Third camera
4. CALIBRATION

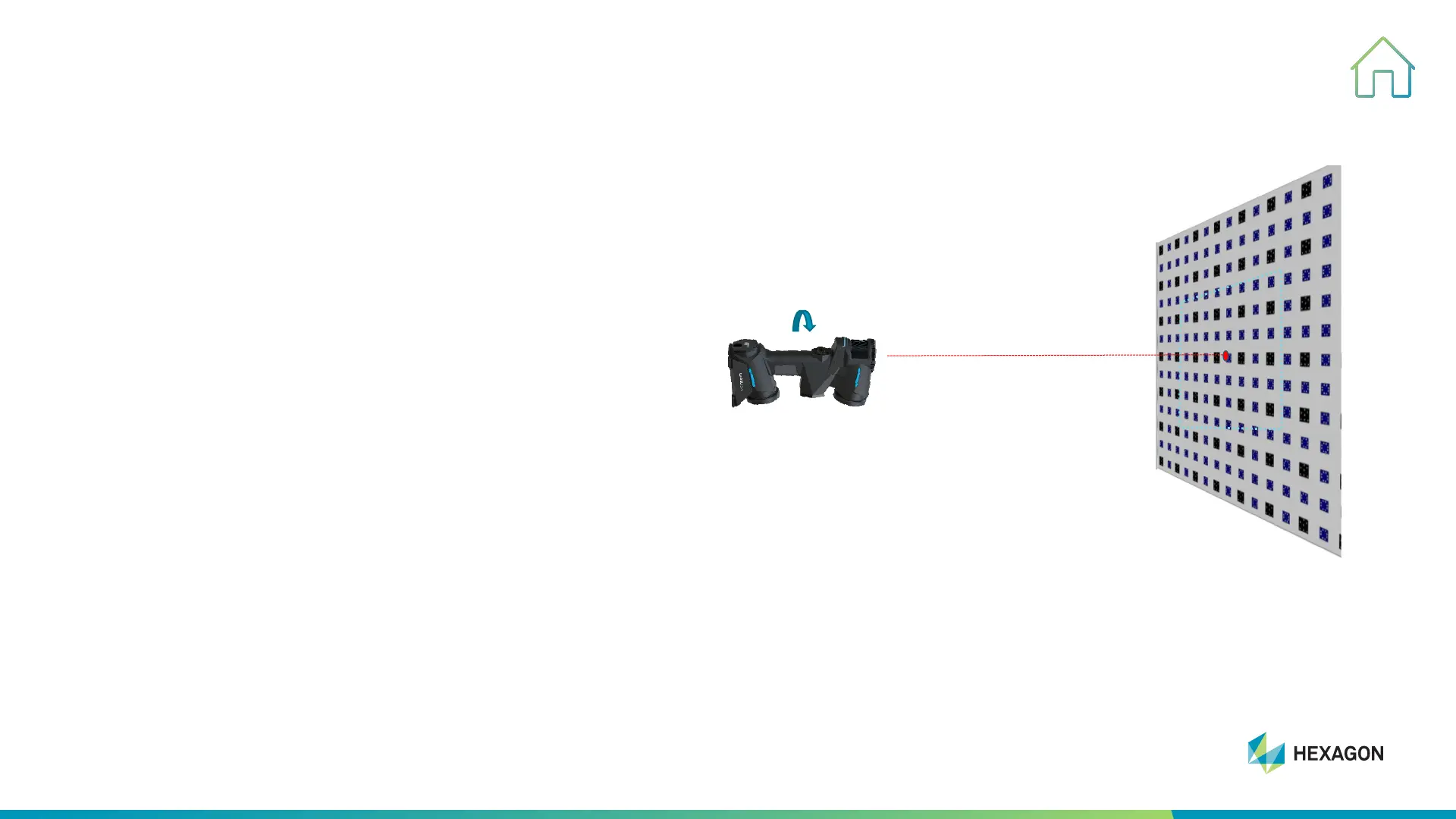

• Put calibration plate 1.5 meters away from
TARGETs wall
• Keep third camera tracking the TARGET wall when
doing calibration
• In calibration, the position and attitude of the
current scanner should be aligned with the
corresponding position indicator bar same as two
camera calibration
90°
1.5
m
