User manual for G3
51

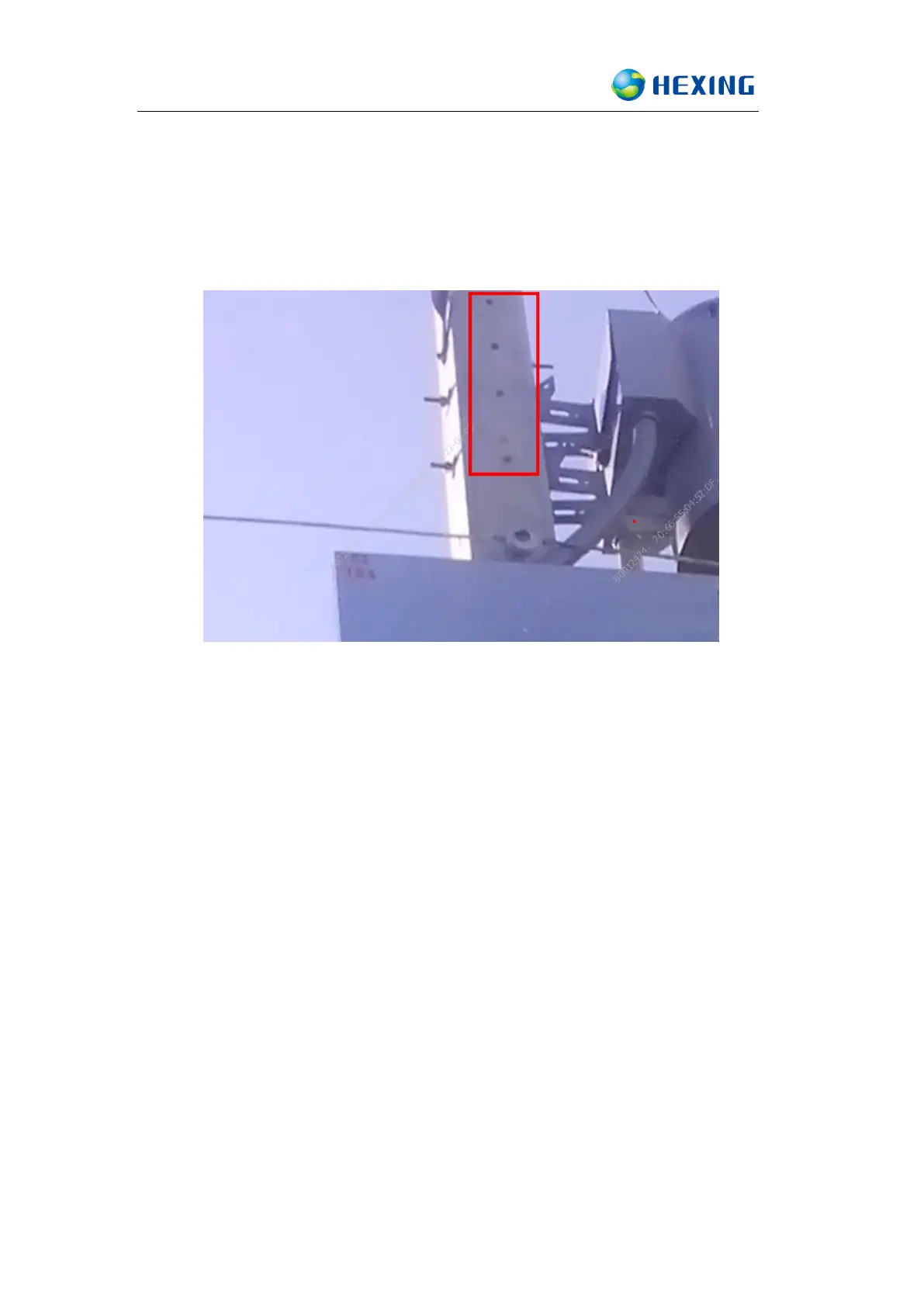

holes with 232mm or 300mm distance between each other. Meanwhile, bolts
and nuts used to connect cabinet and pole are prepared by customer. In this
situation our hanger bracket can perfectly match the pole.
⚫ Installation Tool: 6" monkey spanner or electric drill with hexagon head
⚫ Accessories: Hanger bracket with 232mm/300mm distance
⚫ Steps:
a) Mount the bolt and screw nut on the hanger bracket on meter cabinet; The
nuts should be fastened tightly and the terminal of bolt should touches the
cabinet surface. Note that the another side of bolt should has no nut.
（bolts and nuts shall be prepared by customer）
