LK-LD2410C
manual
The visual display greatly facilitates the user's use.
How to use the upper computer tools:
1. Correctly connect the module serial port with the USB to serial port tool;
2. Select the corresponding serial port number in the upper computer tool, set the baud rate to 256000, select the engineering mode, and click to connect the device;
3. After the connection is successful, click the start button, and the graphical interface on the right will display the test results and data;
4. After connecting, when the start button is not clicked, or click stop after starting, the mode parameter information can be read or set;
Note: After clicking start, the parameters cannot be read and configured, and the configuration can only be performed after stopping.

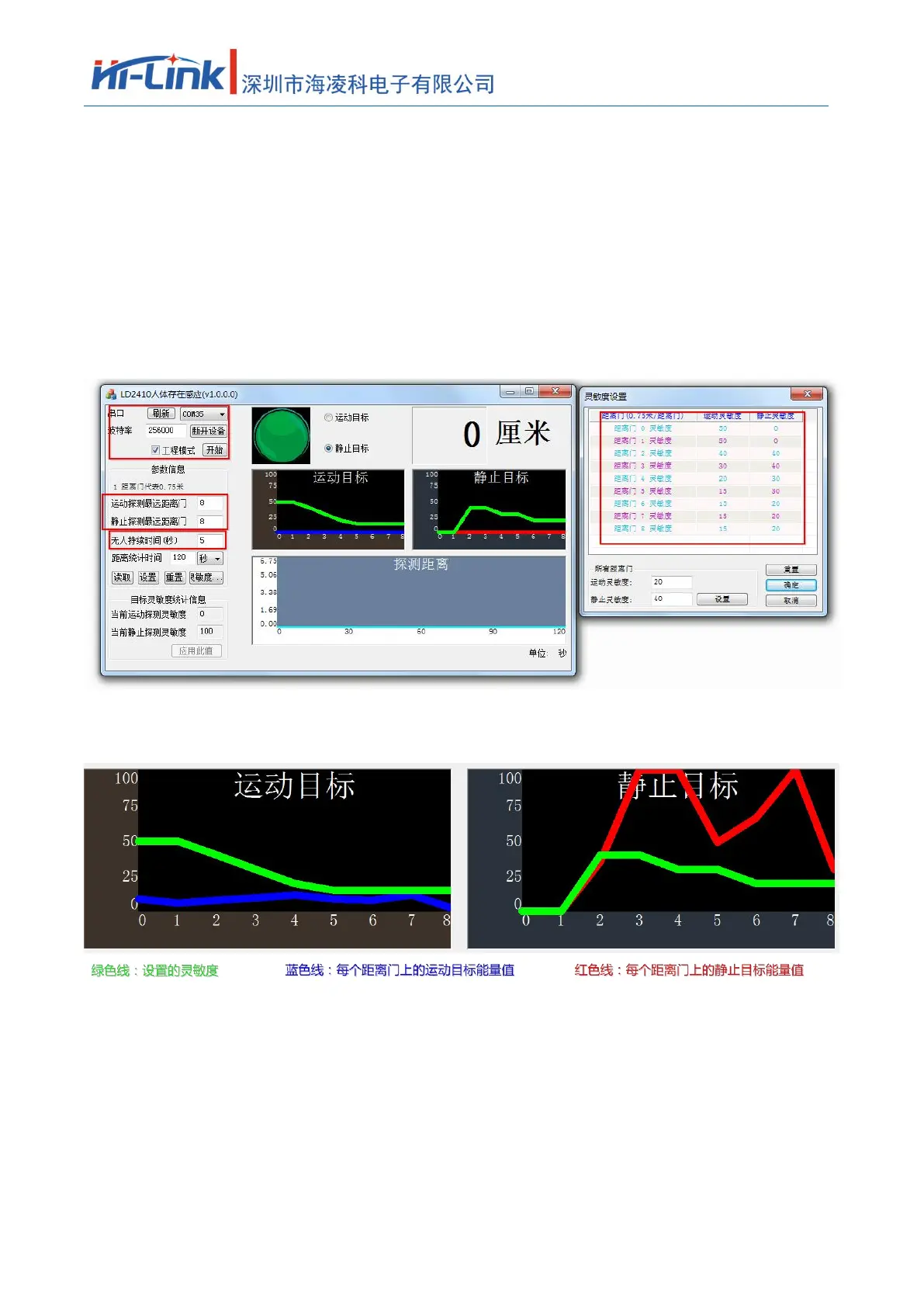

The interface and common functions of the upper computer tool are as follows:
The ball is the output indicator of the target state: red represents a man-made moving target, and purple represents a man-made stationary target;
Green means no one
