4.2 Pin definition

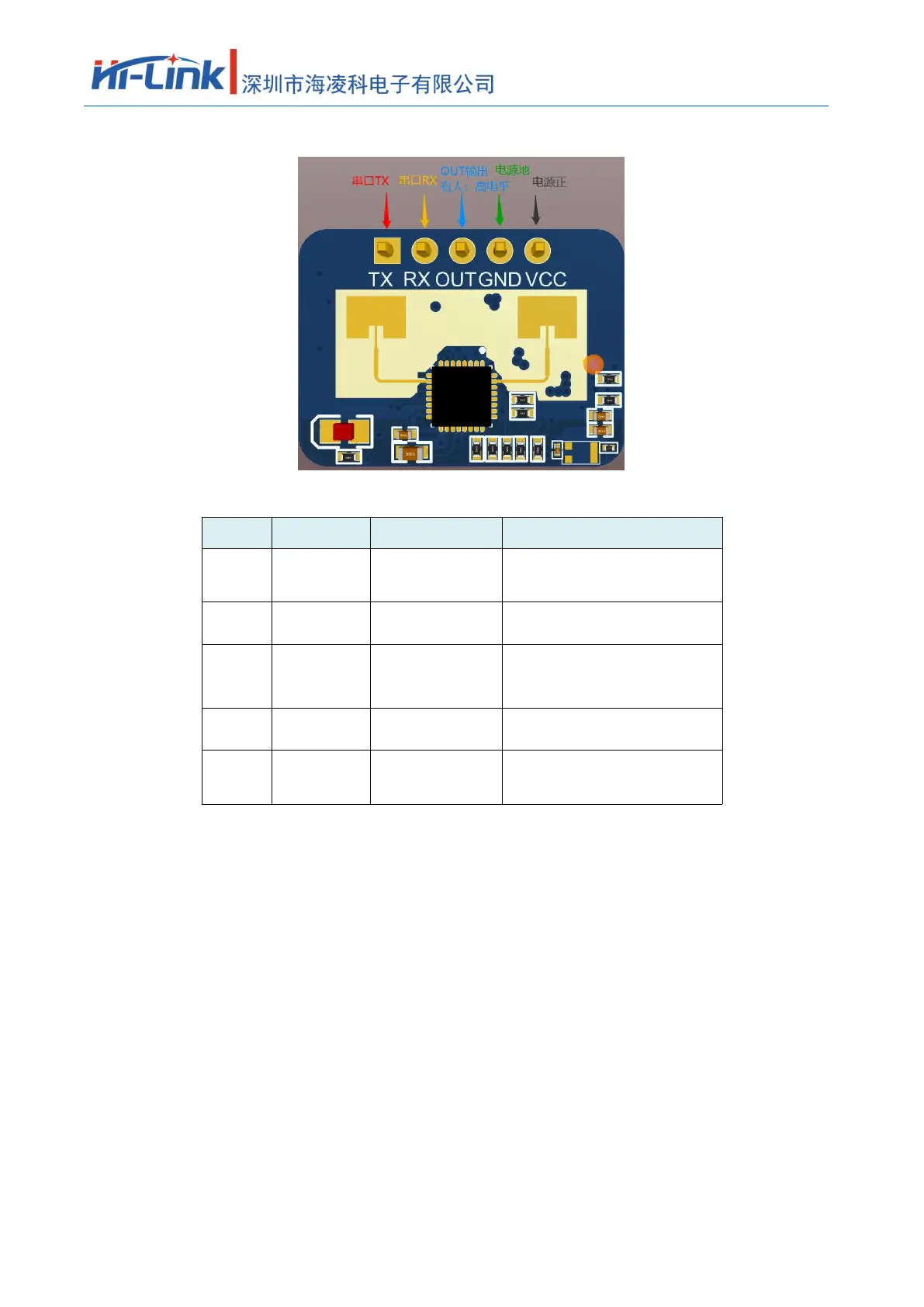

Figure 6 Module pin definition diagram
pin symbol name Function
1 UART_Tx Serial Tx Serial port Tx pin
2 UART_Rx Serial Rx Serial port Rx pin
Human presence detected: output high level
No human presence: output low level
3 out target state output
4 GND power ground power ground
5 VCC power input Power supply input 5~12V (recommended 5V)
Table 1 Pin definition table
Page 8 of 21
