wall
radar
Height 1.5~2 meters
5 meters
(distance unit: meter, angle unit: degree)

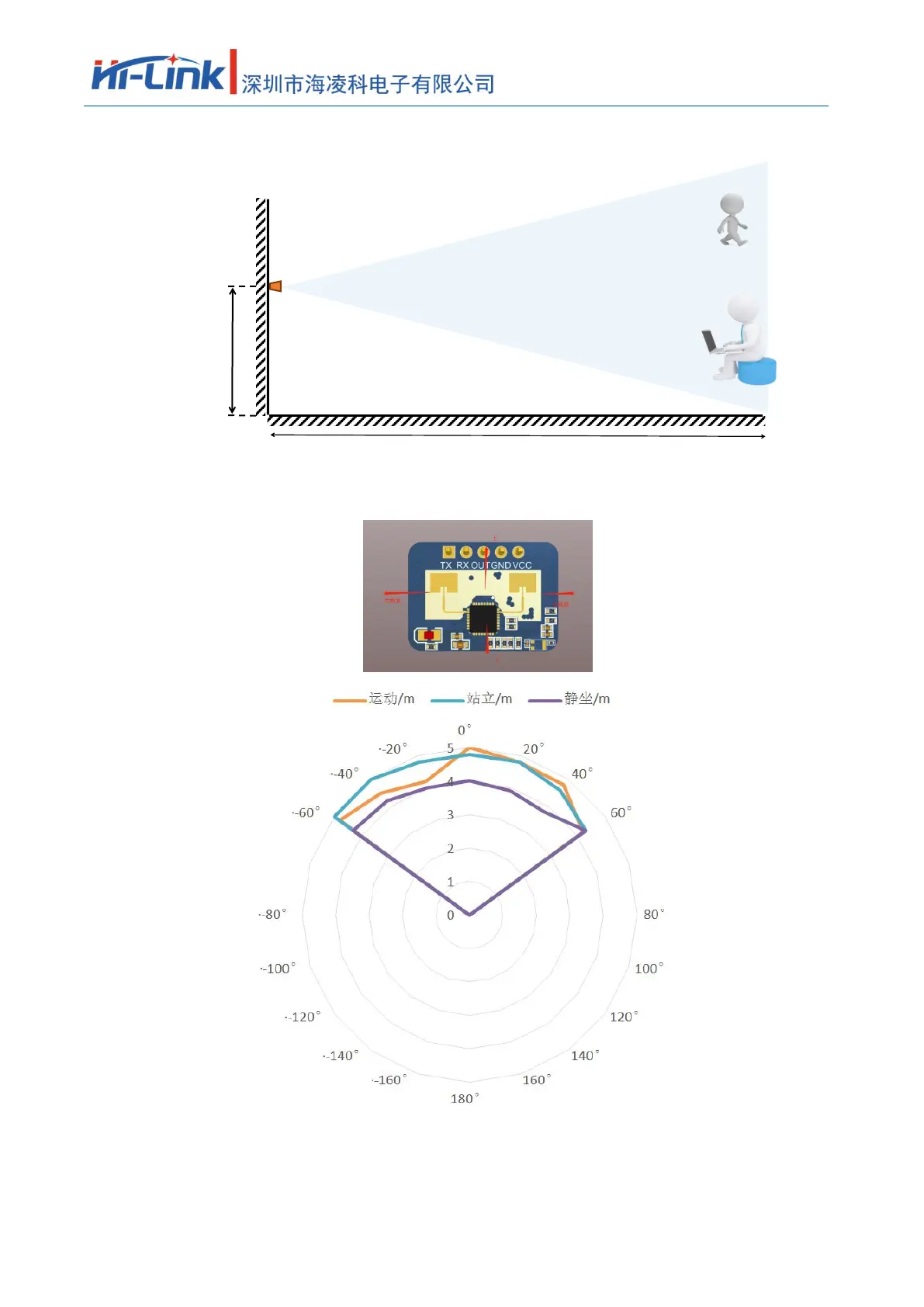

Figure 9 Schematic diagram of wall-mounted installation
Figure 10 Schematic diagram of detection range (wall hanging height 1.5 meters)
