HLK-LD2420
user manual

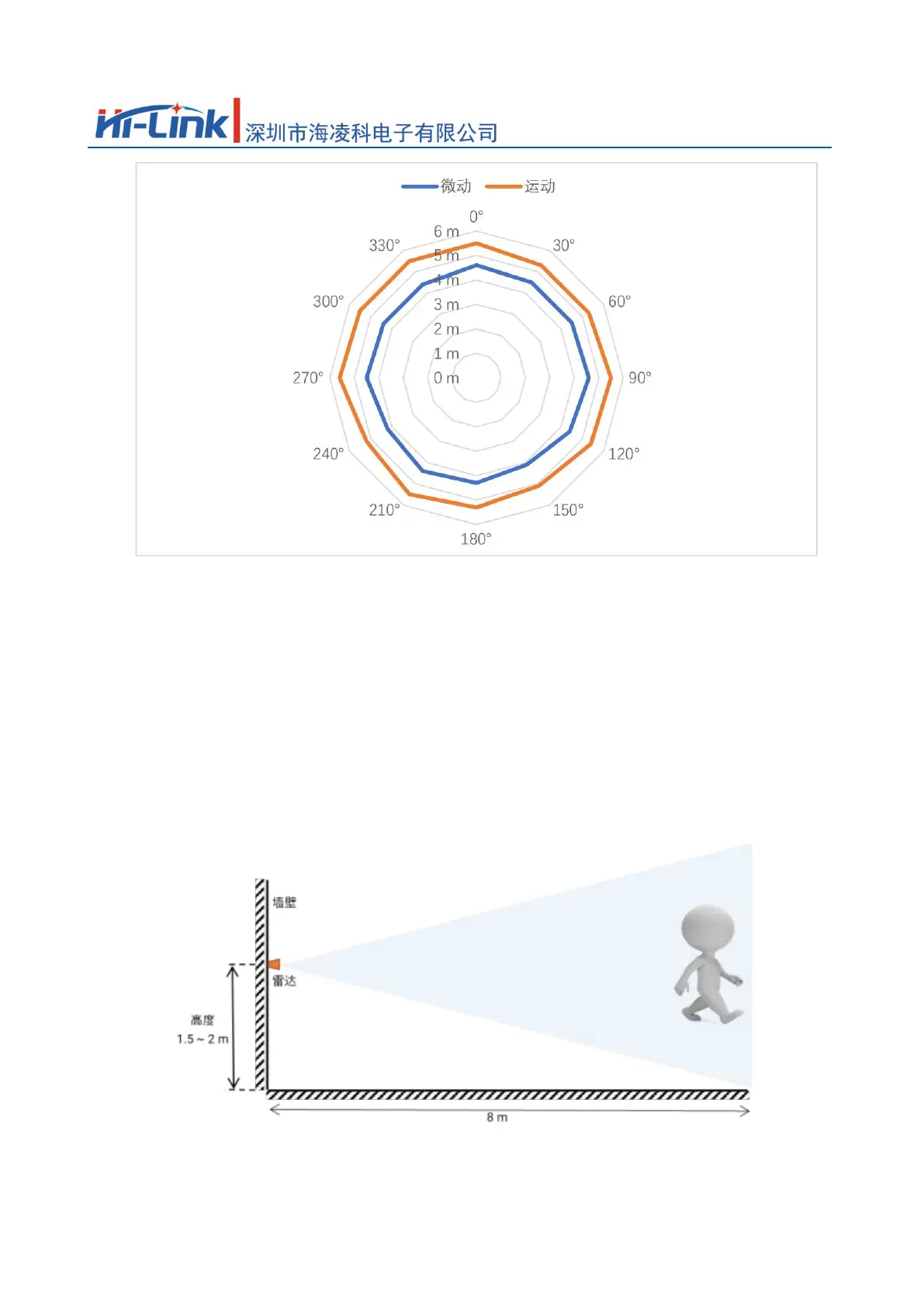

5-3 Ceiling installation sensing range
5.2.wall mount
The recommended wall mounting height is 1.5 to 2 m. When wall-mounted, the X-axis of the radar module (refer to Figure 5-1) points to the horizontal direction, and the Y-axis points upwards.
The Z axis points to the detection area. The HLK-LD2420 radar module mounted on the wall has a maximum motion sensing range of 8 m in radius and horizontal
A three-dimensional fan-shaped space with an included angle of ±45° with the pitch direction, as shown in Figure 5-4.
Figure 5-5 shows the detection range of this reference solution when the wall-mounted installation height is 1.5 m.
Figure 5-4 Schematic diagram of detection range of HLK-LD2420 radar module (wall-mounted)
