HLK-LD2420
user manual
4.2.Host computer use
This section introduces the use of the upper computer tools that are matched with the HLK-LD2420 module, to help users understand the meaning of relevant parameters and related parameters
method of obtaining .
step one, Obtain the upper computer tool "HLK-2420_TOOL.exe" supporting HLK-LD2420 from the official website of HLK-LD2420.
Step two,According to the method in Figure 4-1, use the serial port adapter board to connect the radar module and the host computer.
Step three,Open the host computer tool, select the serial port number of the radar module, and enter the baud rate115200, click the "Connect Device" button to
Read and write parameters (note: the serial port tool and the host computer tool cannot be used at the same time).
4.2.1.parameter settings

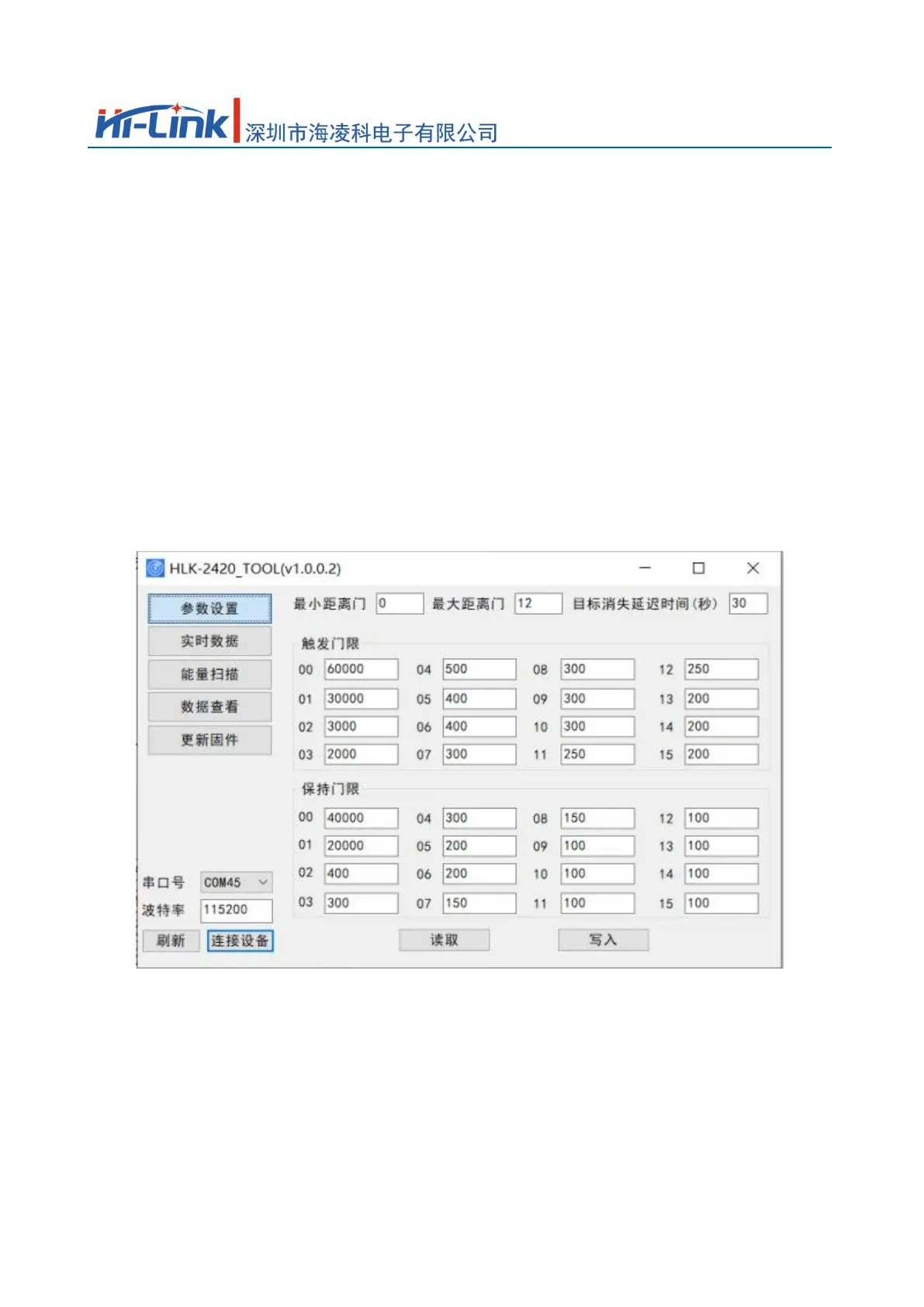

The upper computer tool interface is shown in Figure 4-2.
Figure 4-2 HLK-LD2420_Tool interface
