6.Mechanical Dimensions

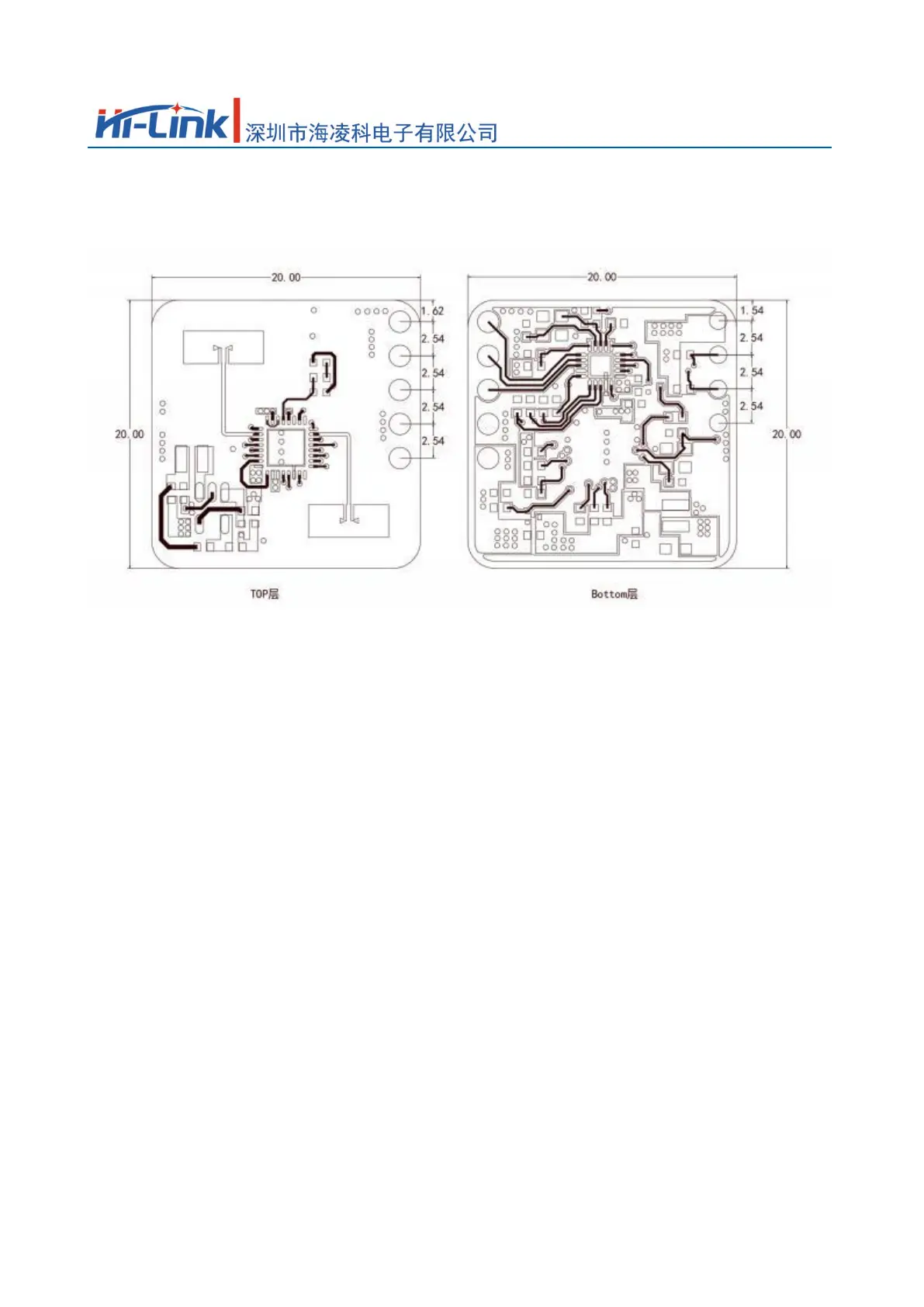

Figure 6-1 shows the mechanical dimensions of the module, all units are mm. The plate thickness of the modules is 1.2 mm with a tolerance of ±10%.
Figure 6-1 Hardware mechanical dimensions
7.Installation Notes
Radar Enclosure Requirements
If the radar requires an enclosure, the enclosure must have good wave-transmitting properties in the 24 GHz band and must not contain metal or be sensitive to electromagnetic waves.
wave shielded
The material of action. See the mmWave Sensor Radome Design Guidelines for more considerations.
Installation environment requirements
This product needs to be installed in a suitable environment. If it is used in the following environments, the detection effect will be affected:
-
-
-
There are non-human objects that are continuously moving in the sensing area, such as animals, continuously swinging curtains, and large green plants facing the air outlet.
There are large areas of strong reflection planes in the sensing area, and strong reflectors facing the radar antenna will cause interference.
When installing on the wall, it is necessary to consider external interference factors such as air conditioners and electric fans on the top of the room.
