Page 10 of 26 Installation Guide
© 2018 HID Global Corporation All rights reserved.
Web-Based Access Control Solution
ACW2-XN

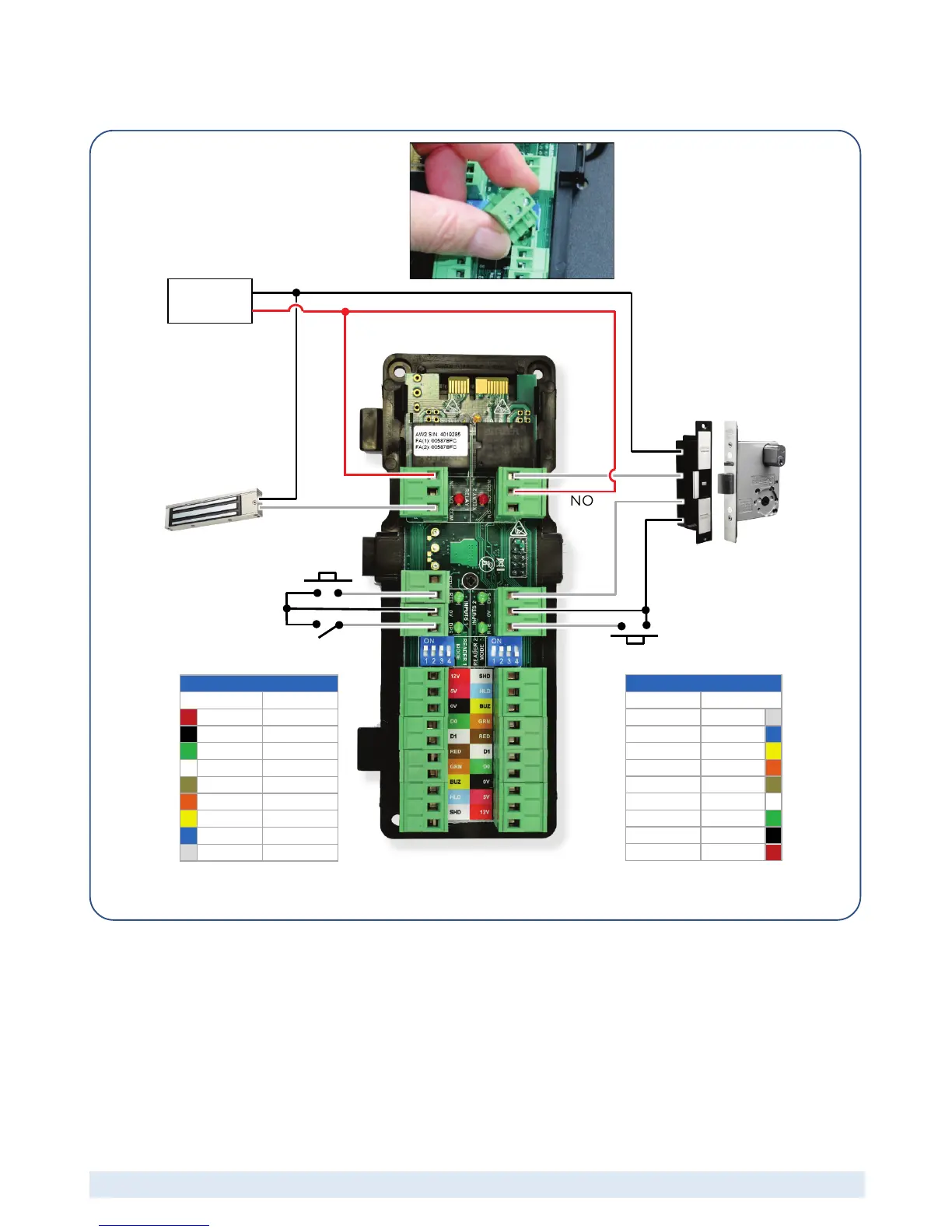

AW2 Wiring Example
*DPS: Some electric strike locks include Door Position Sense terminals. When they don’t, additional
sensors should be fitted if door position sensing is required.
Some strike locks and maglocks have built-in arc suppression. Consult the installation information for the
locks you are using. It is recommended that the MOVs (supplied with the Wiegand Module) are
connected across any inductive loads.
NB: The supplied MOVs are only suitable for 12V applications.
CAUTION:
• Inadequate spark suppression can result in early failure of relay contacts – and will void the
warranty on the affected AW2 module.
Terminal blocks unplug, giving easy
access to the terminal screw heads
To Next Page
