Web-Based Access Control Solution
ACW2-XN

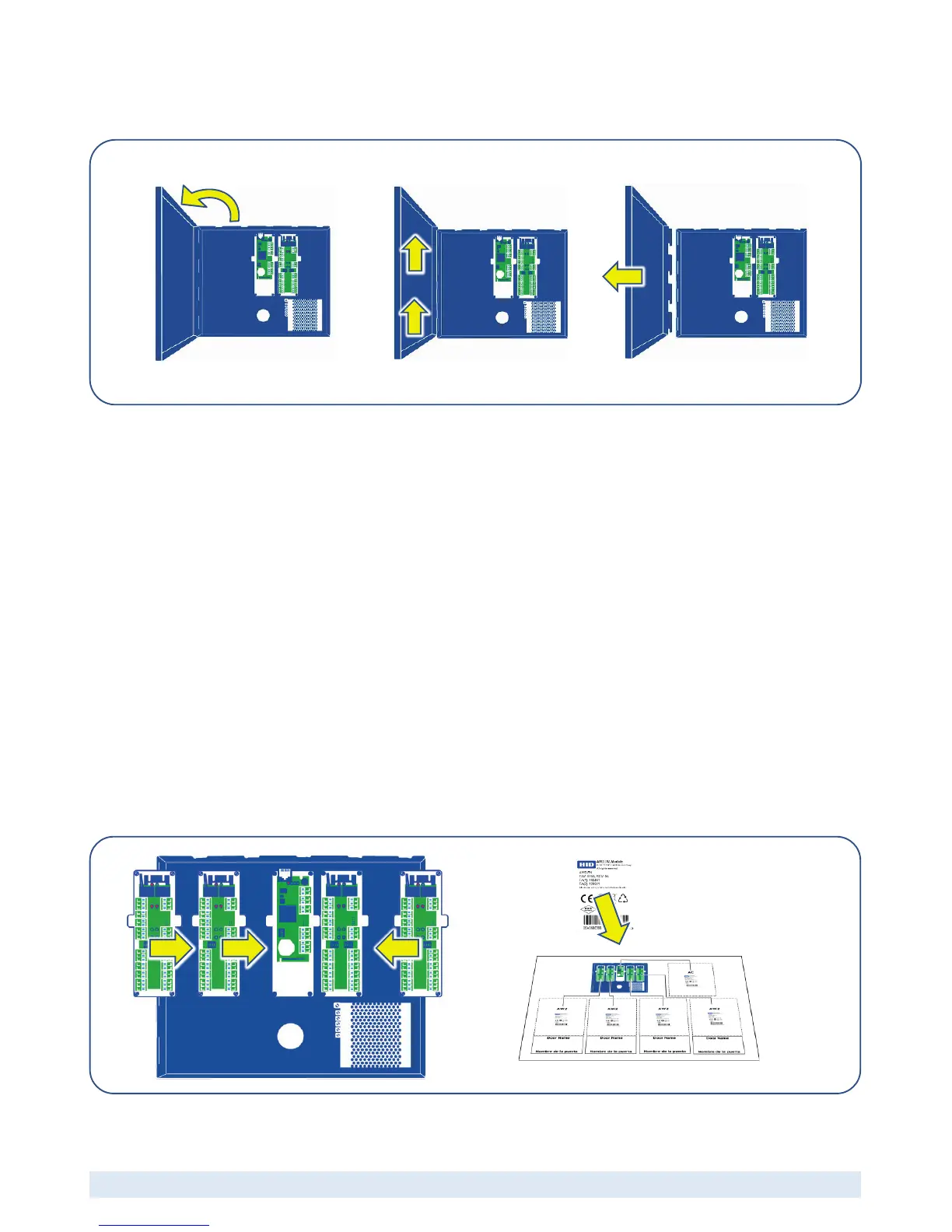

Removal/Fitting the Lid
Mark Up Mounting Holes Using Drilling Template
1. Select fasteners that are appropriate for the mounting surface (masonry/wood/ dry wall)
2. Select the drill size appropriate for the fasteners
3. Fix the Drilling Template against the chosen vertical surface (using the supplied double-sided tape),
making sure that the top edge is horizontal. (Remember to allow 30 mm clearance on the left of the
ACW2-XN enclosure to allow the door to hinge fully open.)
4. Centre punch the two mounting hole locations
5. Drill holes of a diameter that is suitable for the fasteners
6. Remove the lid from the enclosure (as per instructions above)
7. Mount the enclosure to the surface
8. Replace the lid (and plug the lid cable back in) after the system wiring is complete
9. Place the AC and AW2 module labels in the correct positions provided on the back page of the
ACW2-XN Quick Install Guide. The information on the labels will be used during the door
configuration process via HID Access Manager.
Expanding the controller with more Wiegand Modules
The
comes assembled with one AW2 module, and can support another three AW2 modules.
Additional AW2 modules are plugged into the sides of the existing modules, and then fastened in place
with the four mounting screws that are included with each AW2 module.
Remember to place the additional AW2 Module labels on the back page of the ACW2-XN Quick Install
Guide
Note:
•
