Web-Based Access Control Solution
ACW2-XN
Mains supply connection
Mains Cable Specification
• Use a mains plug that is standard for the region.
• Select cable that is in accordance to National Wiring code best practices of your local authority.
Mains Cable connection
1. Lay the mains cable from the mains outlet to the IPS enclosure, ensuring that in is
plugged in to
the mains outlet.

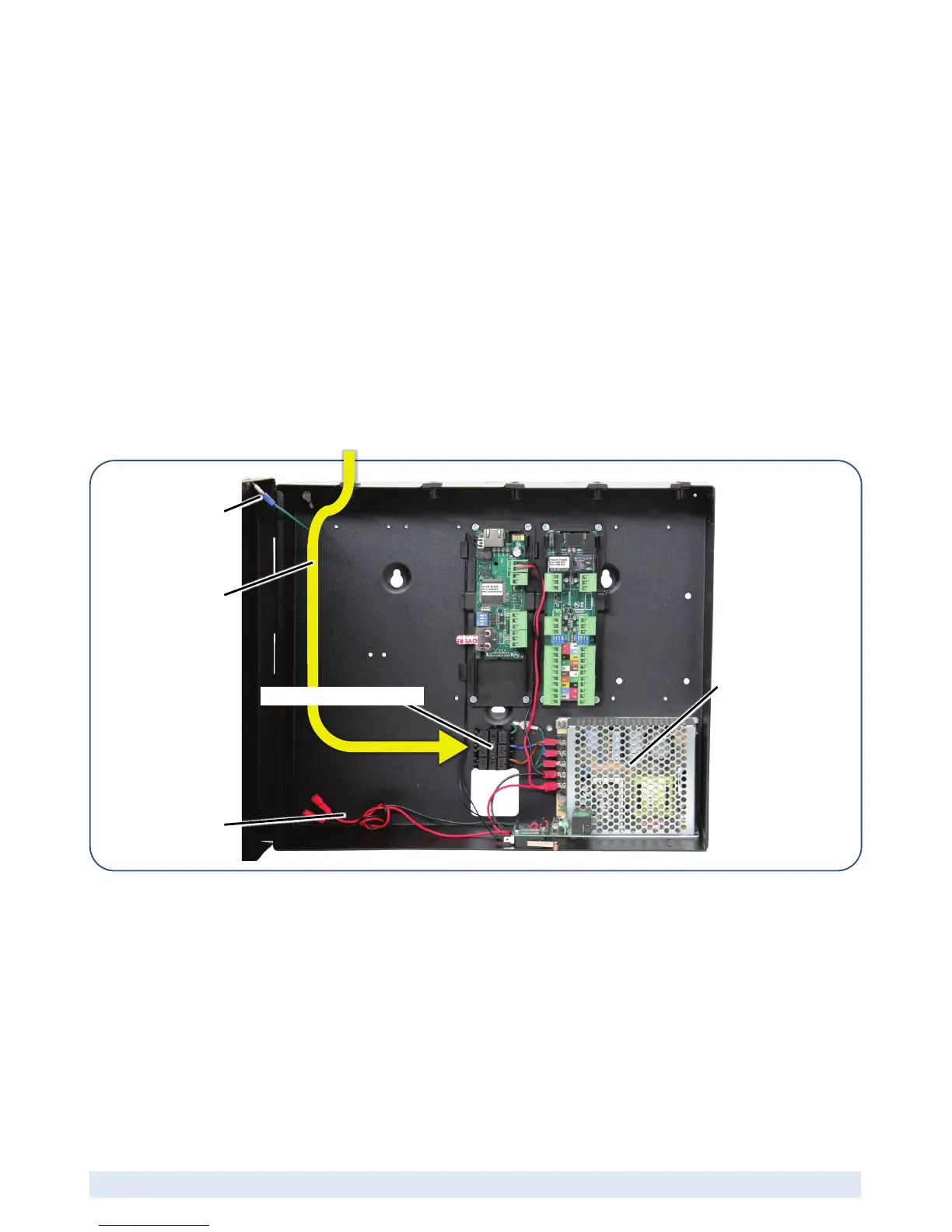

2. Pass the mains cable through a gland in the enclosure wall and follow the route indicated by the
yellow arrow. (It should pass behind the battery, if it were installed)
3. Strip the ends mains cable, exposing 10 mm of the conductors.
4. Press down on the terminal buttons while threading each stripped wire end into its corresponding
terminal.
5. Releasing the terminal button will clamp the stripped wire end in place.
6. Take some time to thoroughly inspect all the wiring and correct any mistakes before progressing to
the next step.
7. Pull out the plastic tag from under the Lithium Button Cell on the Controller Module’s PCB.
8. Plug the mains supply cable into the outlet socket and power up the installation.
9. The STAT (Status) LEDs on the Controller and Wiegand Modules will flash rapidly for approximately
one second.
10. After one second the Controller STAT LED will turn off during the booting process. The Wiegand
Modules’ STAT LEDs will remain on constantly as long as a suitable supply voltage is present.
11. Once satisfied that here are no short circuits it is now safe to connect the recommended 12V battery
(not included) using the ACW2-XN’s integrated spade terminal plugs.
