HID EH400 - Edge Device Installation; Install Edge to Backplate

82000-920 A.1
INSTALLATION GUIDE
3
©2009 HID Global Corporation. All rights reserved.
EdgeReader and EdgePlus
EH400, EHR40, EHRP40, EH400-K
EdgePlus - EH400-K

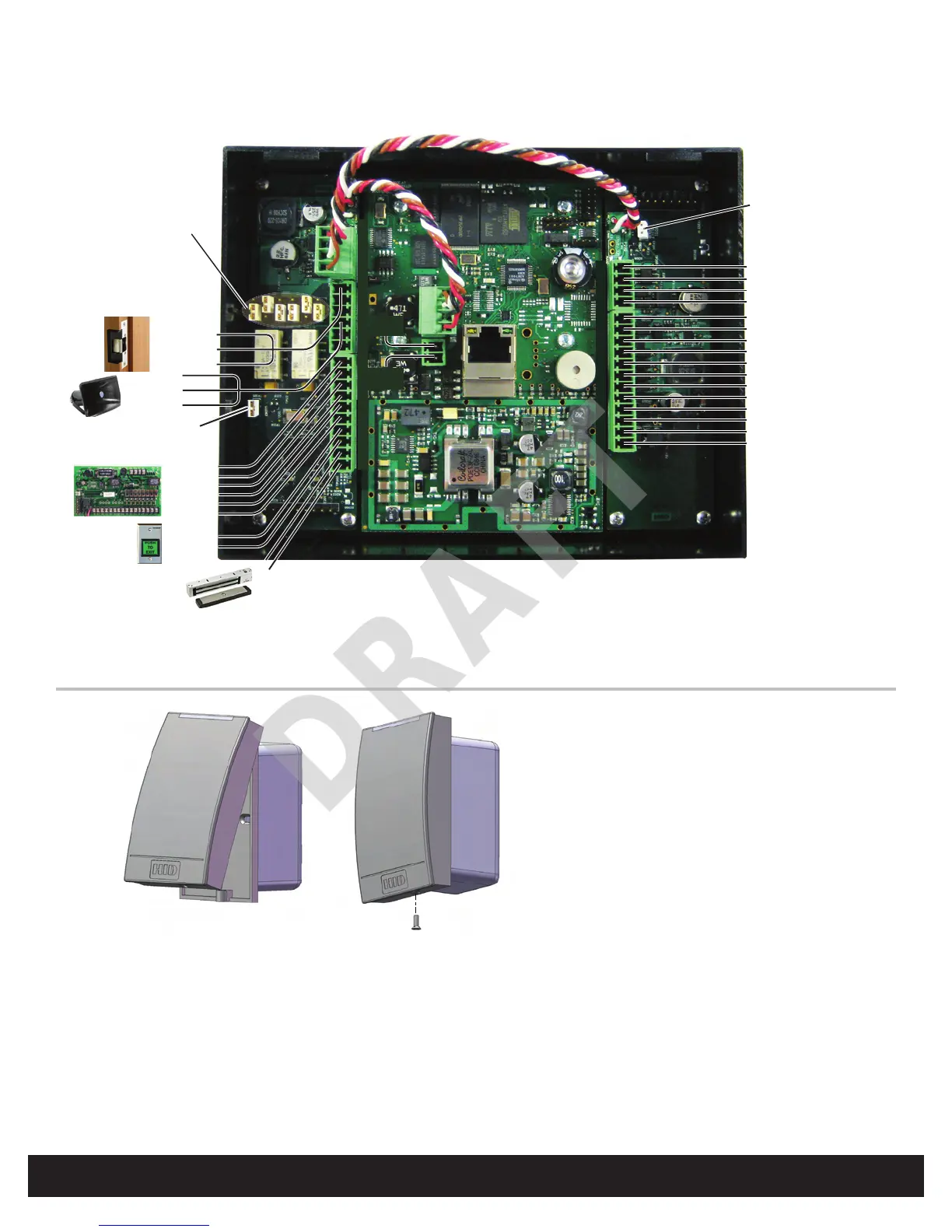

Hi-O Group Select Jumper
Short = Group 1, Open = Group 2
Outside Door Inside Door
(
)
1 P3 12 1 P1 4
CAN V+ (12 VDC or 24 VDC)
CAN Ground
CAN High
CAN Low
+12V OUT
+12V GND
DATA0/DATA
DATA1/CLK
TAMPER OUT
GRN LED
RED LED
HOLD
NO TAMPER
BEEPER
READER TAMPER
TAMPER GND
GRP SEL
REX
REX Return
10 P3 1 4 P1 1
BATT
BATT Return
Hi-O Group Select Jumper
Short = Group 1, Open = Group 2
Outside Door Inside Door
( )
AC
AC Return
No Tamper
Tamper Out
AUX N.O.
AUX N.C.
AUX Common
Strike N.O.
Strike N.C.
Strike Common
Relay Jumpers
6 P10 1
P9 P5 P8 P6 P4 P7
AUX
PWR +V
AUX
PWR V
Door
Door Return
Install Edge to Backplate
