Crankcase

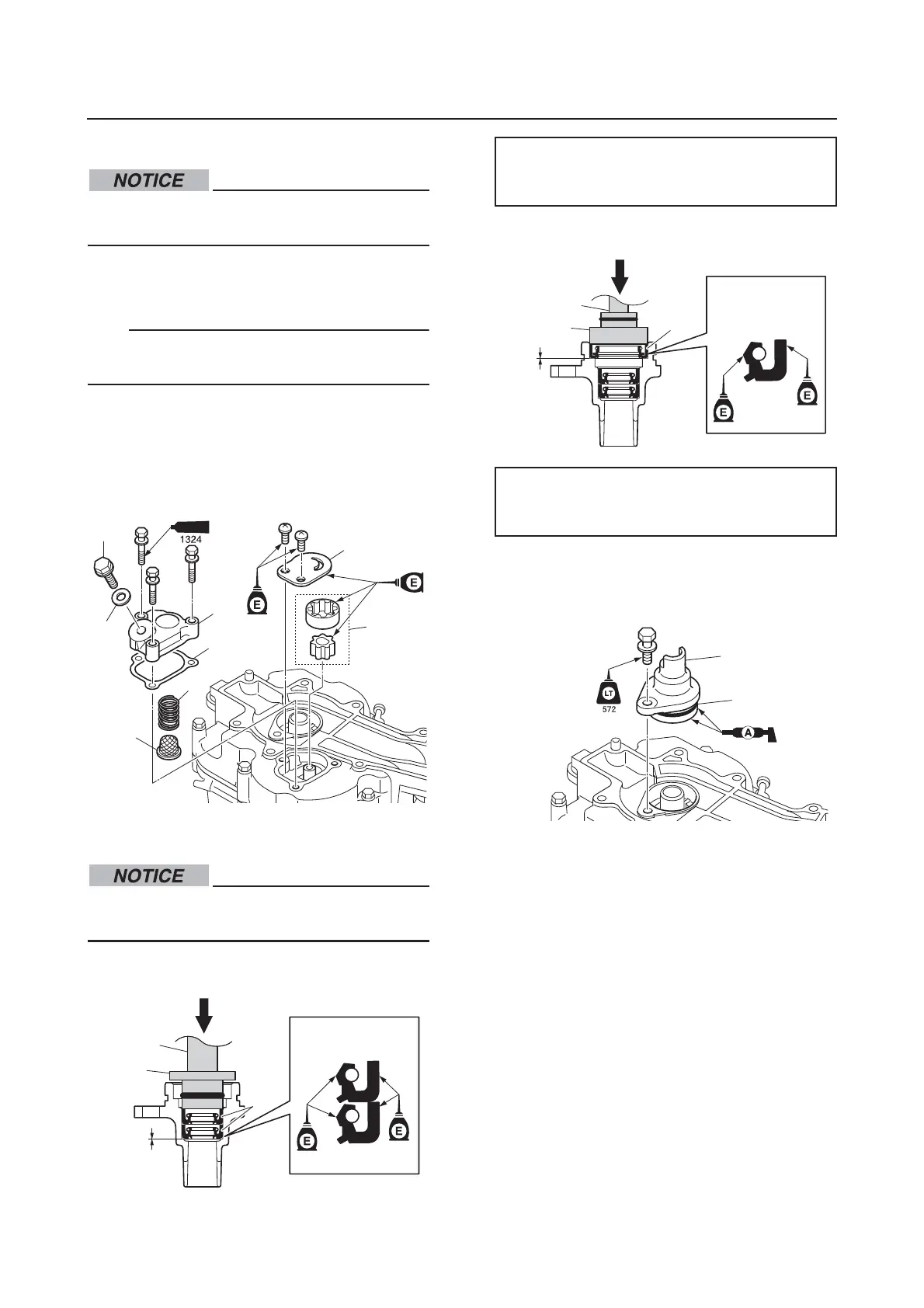

Installing the oil pump
Do not reuse a gasket, always replace it
with a new one.
1. Install the rotor assembly a and plate b.
TIP:
Install the rotor assembly in the same direc-
tion as when it was removed.
2. Install the oil strainer c, the spring d, a
new gasket e, and the cover f.
3. Install a new gasket g and the drain bolt
h.
Installing the oil seal housing
Do not reuse an oil seal or O-ring, always
replace it with a new one.
1. Install new oil seals a.
2. Install the oil seal d.
3. Install a new O-ring f to the oil seal
housing g, and then install the oil seal
housing g.
a
b
c
d
e
f
g
h
b
c
a
Driver rod L3 b
Needle bearing attachment c
Driver rod L3 b
Needle bearing attachment e
d
b
e
f
g
