Hidea HDF6 - Removing the Propeller Shaft Housing Assembly; Checking the Propeller Shaft; Disassembling the Propeller Shaft Housing Assembly

Propeller shaft housing
Removing the propeller shaft
housing assembly

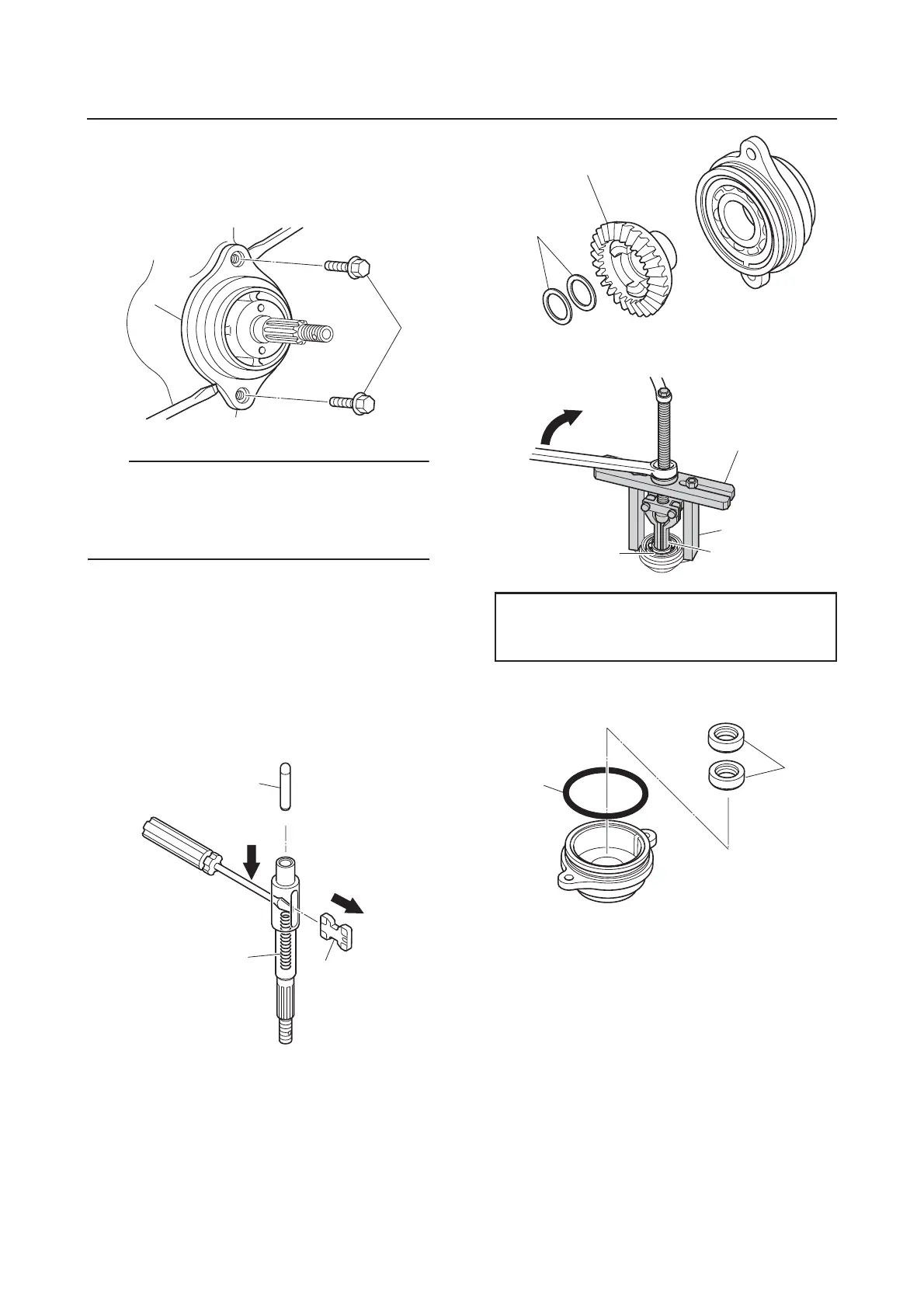

1. Remove the bolts a, and then remove
the propeller shaft housing assembly b.
TIP:
Insert flat-head screwdrivers between the
propeller shaft housing assembly b and the
lower case to remove the propeller shaft
housing assembly.
Disassembling the propeller shaft
assembly
1. Remove the shift plunger a.
2. Push the spring b, and then remove the
dog clutch c.
3. Remove the spring b.
Disassembling the propeller shaft
housing assembly
1. Remove the washers a and reverse
gear b.
2. Remove the ball bearing c.
3. Remove the oil seals g and O-ring h.
Checking the propeller shaft
1. Check the propeller shaft. Replace if
damaged or worn.
2. Measure the propeller shaft runout.
a
b
a
c
b
Stopper guide plate d
Stopper guide stand e
Bearing puller assembly f
a
b
d
e
f
c
g
h
149
