Hidea HDF6 - Disassembling the Tiller Handle

BRKT
Bracket unit

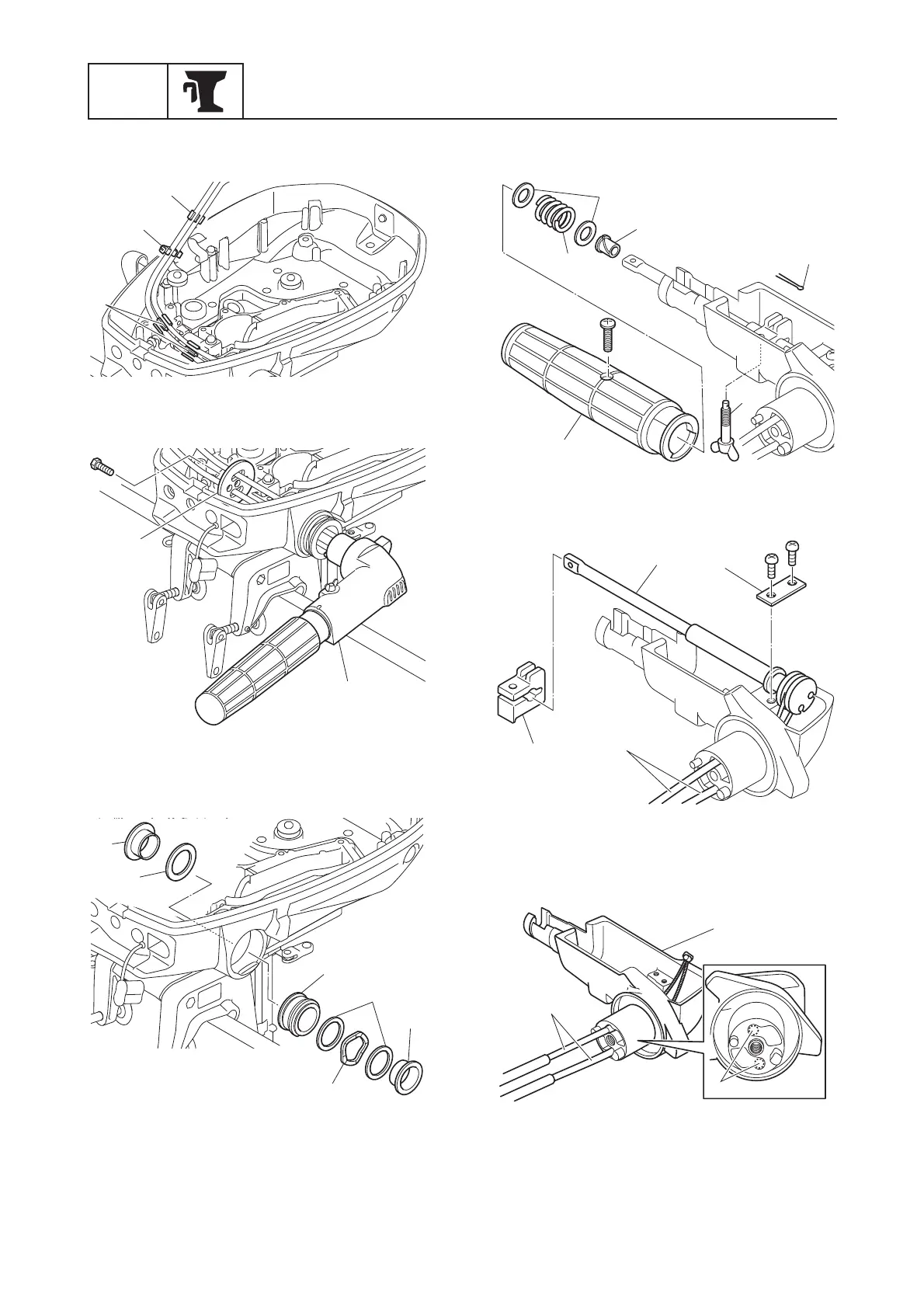

Disassembling the tiller handle
1. Remove the holders a, b, and c.
2. Remove the plate d and tiller handle
assembly e.
3. Remove the bushings f, g, washers h,
i, and wave washer j, and then
remove the bushing k.
4. Remove the throttle grip l, washers m,
spring n, and bushing o.
5. Remove the cotter pin p and throttle
friction adjuster q.
6. Remove the plate r, friction piece s,
throttle cables t, and throttle rod u.
Assembling the tiller handle
1. Pass the throttle cables a through the
holes in the tiller handle b.
2. Install the cable into the throttle rod c.
b
c
a
e
d
k
i
j
g
h
f
q
p
o
m
n
l
s
r
t
u
a
a
b
164
