Hidea HDF6 - Fuel Pump

FUEL
Fuel system

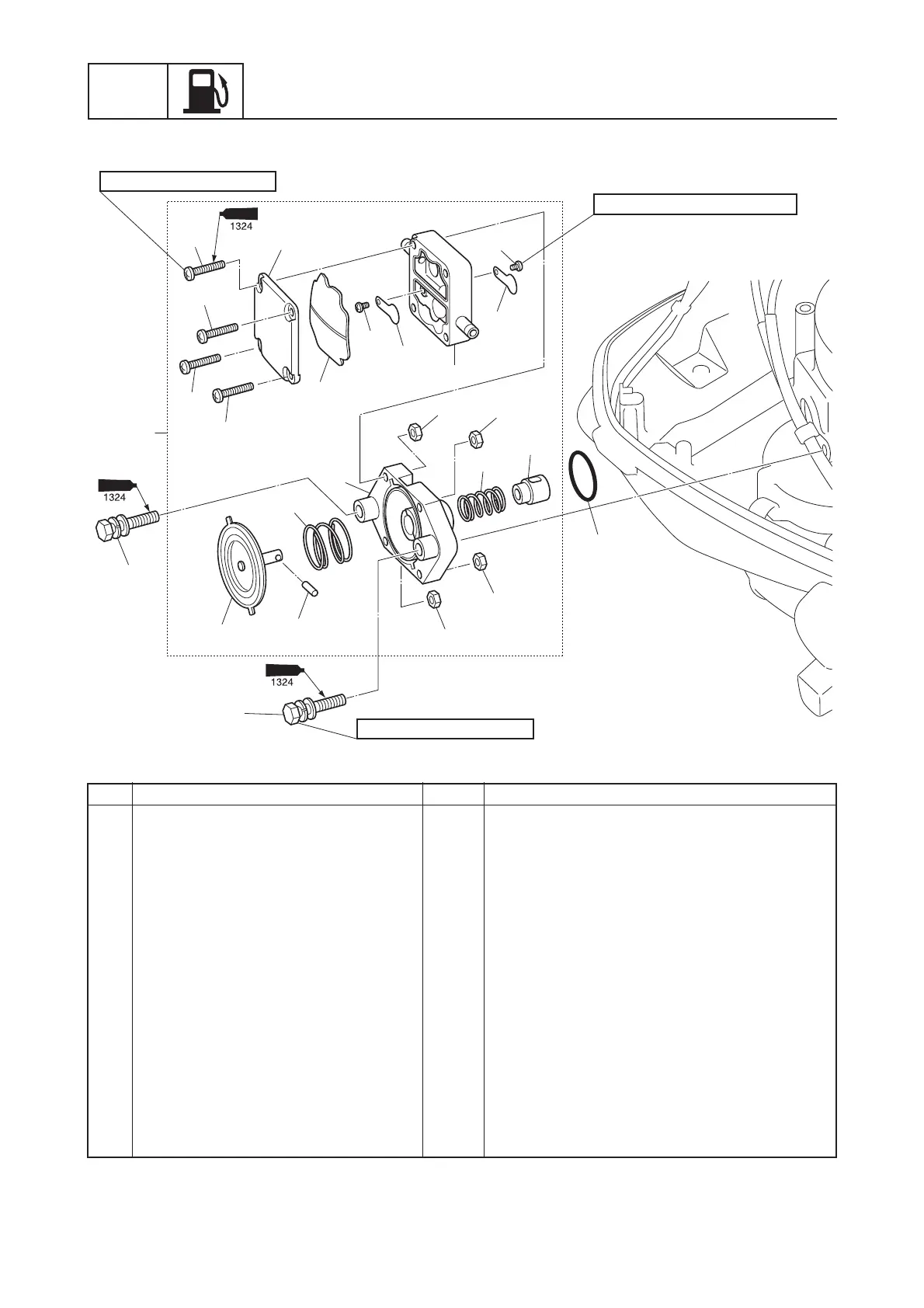

Fuel pump
No. Part name Q’ty Remarks
1 Fuel pump 1
2 Fuel pump screw 4
3Cover 1
4 Diaphragm 1
5 Fuel pump valve screw 2
6Valve 2
7 Fuel pump body 2 1
8 Plunger 1
9Nut 4
10 Spring 1
11 Fuel pump body 1 1
12 Spring 1
13 Pin 1
14 Diaphragm 1
15 Fuel pump bolt 2
16 O-ring 1
/PUSFVTBCMF
/PUSFVTBCMF
14
12
13
7
6
5
1
6
5
4
2
2
2
9
15
15
10
8
16
9
2
9
9
3
11
2 N·m (0.2 kgf·m, 1.5 ft·lb)
0.5 N·m (0.05 kgf·m, 0.37 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
/PUSFVTBCMF
88
