Hidea HDF6 - Removing the Drive Shaft; Disassembling the Lower Case; Checking the Pinion

LOWR
Lower unit

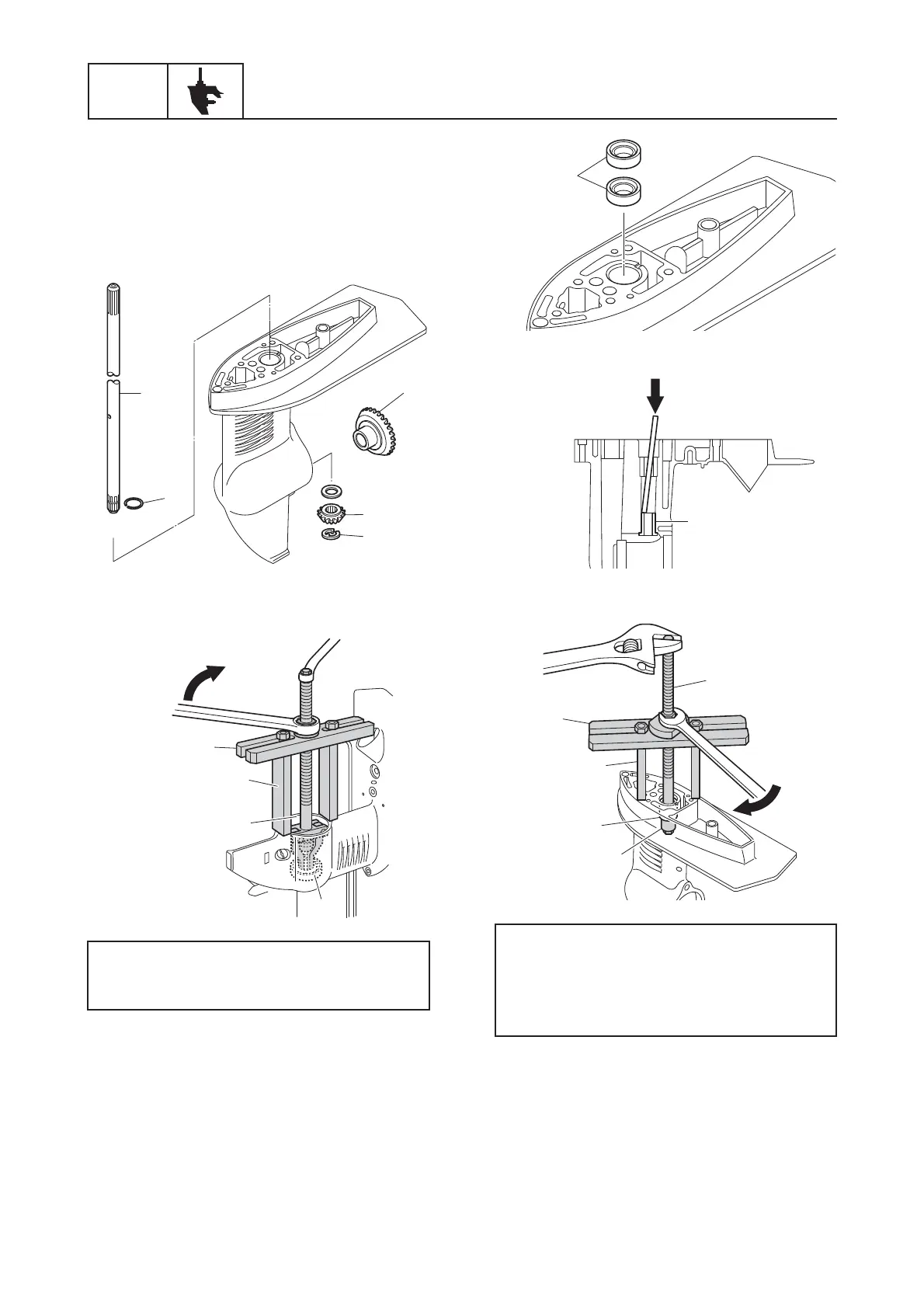

Removing the drive shaft
1. Remove the E-clip a, and then remove
the drive shaft b and pinion c.
2. Remove the clip d.
3. Remove the forward gear e.
Disassembling the lower case
1. Remove the ball bearing a.
2. Remove the oil seals e.
3. Remove the bushing f.
4. Remove the bushing g.
Checking the pinion
1. Check the teeth of the pinion. Replace if
cracked or worn.
Checking the forward gear
1. Check the teeth and dogs of the forward
gear. Replace if cracked or worn.
Stopper guide plate b
Stopper guide stand c
Bearing puller assembly d
a
c
b
d
e
b
a
c
d
Stopper guide plate b
Stopper guide stand c
Bushing installer center bolt h
Bushing attachment i
e
f
h
b
c
g
i
152
