Hidea HDF6 - Page 143

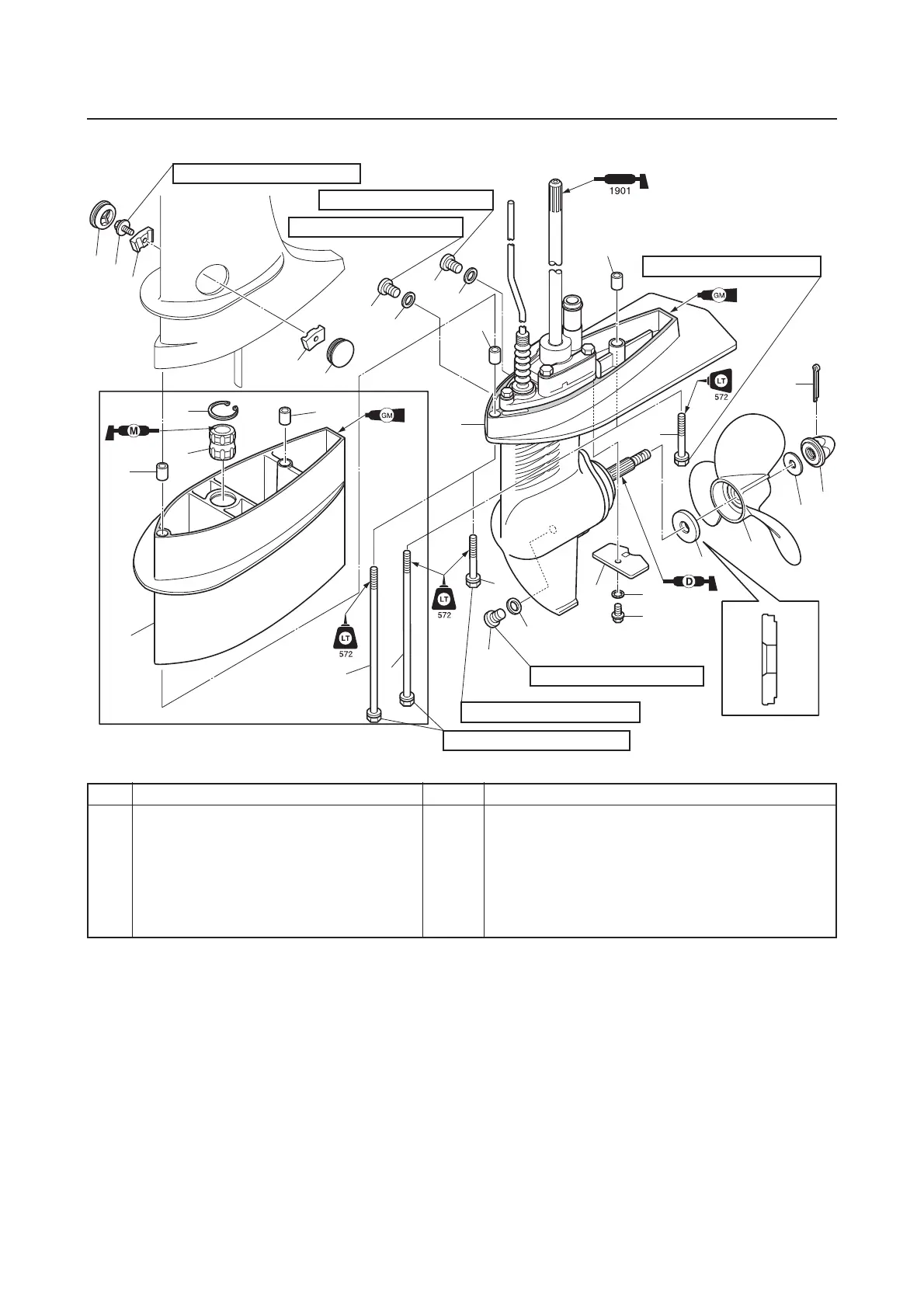

Lower unit
No. Part name Q’ty Remarks
18 Drain screw 1
19 Lower case mounting bolt 2
20 Extension 1
21 Bushing 1
22 Circlip 1
23 Dowel 2
A
1
1
2
3
4
23
8
8
23
22
21
19
19
5
6
11
14
14
18
6
17
15
16
13
12
11
10
9
1ÂPNJIÂPIWÂOE
15N·m (1.5 kgf·m, 11.1 ft·lb)
11N·m (1.1 kgf·m, 8.1 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
7
6
20
11N·m (1.1 kgf·m, 8.1 ft·lb)
A L-transom model
