Hidea HDF6 - Page 170

BRKT

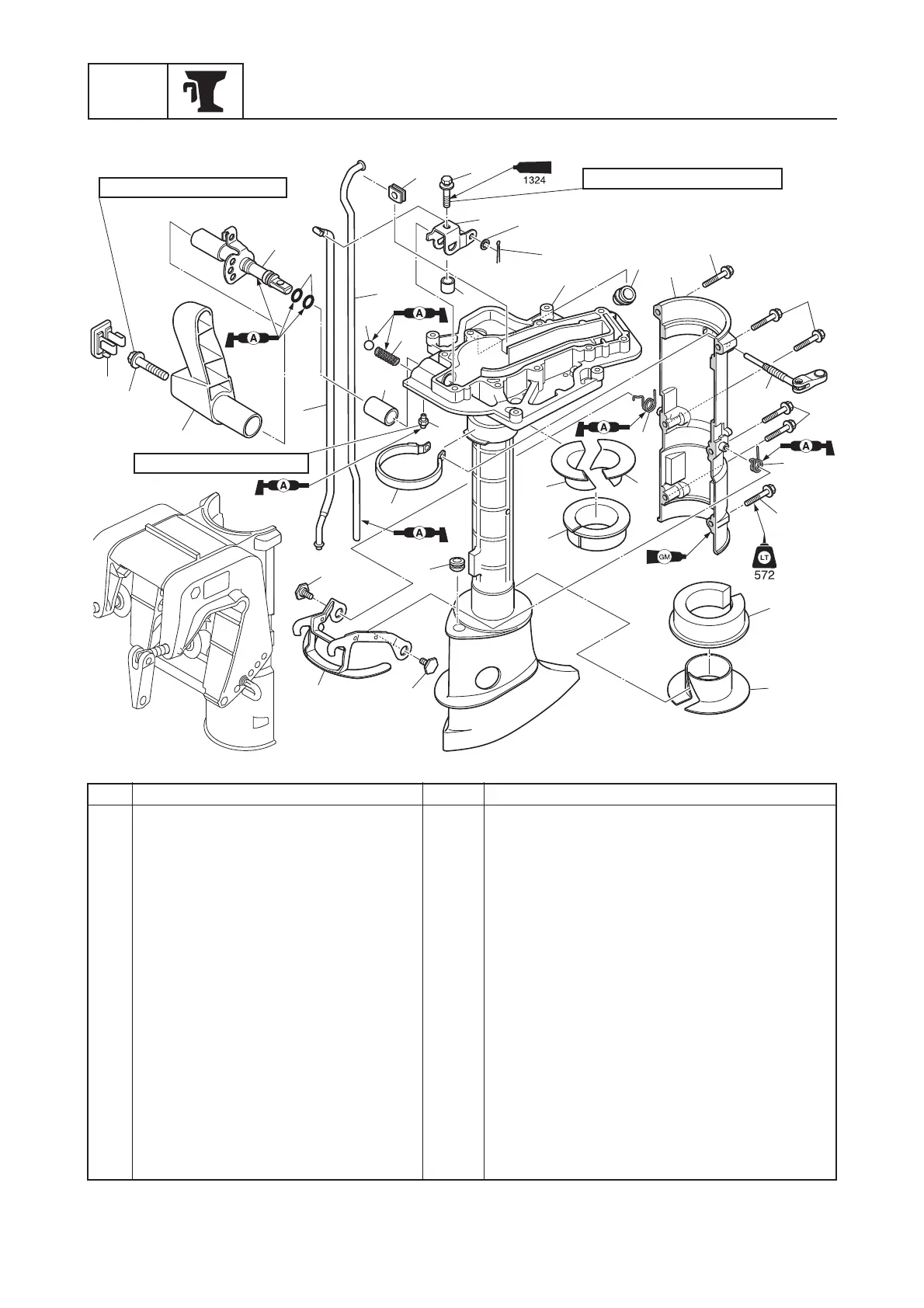

Bracket unit
Upper case and shift lever
No. Part name Q’ty Remarks
1Cap 1
2 Shift lever bolt 1
3 Shift lever 1
4 Shift rod 1
5 Pipe 1
6 Rubber seal 1
7 Shift link lever 1
8O-ring 2
/PUSFVTBCMF
9Ball 1
10 Spring 1
11 Shift link bolt 1
12 Bracket 1
13 Washer 1
14 Cotter pin 1
/PUSFVTBCMF
15 Upper case 1
16 Damper 1
17 Cover 1
3
6
12
13
14
15
17
16
18
18
19
18
20
18
21
24
24
25
5
26
27
26
29
4
11
7
8
9
10
30
23
22
2
1
3.5 N·m (0.35 kgf·m, 2.58 ft·lb)
19 N·m (1.9 kgf·m, 14.0 ft·lb)
28
31
3 N·m (0.3 kgf·m, 2.2 ft·lb)
32
170
