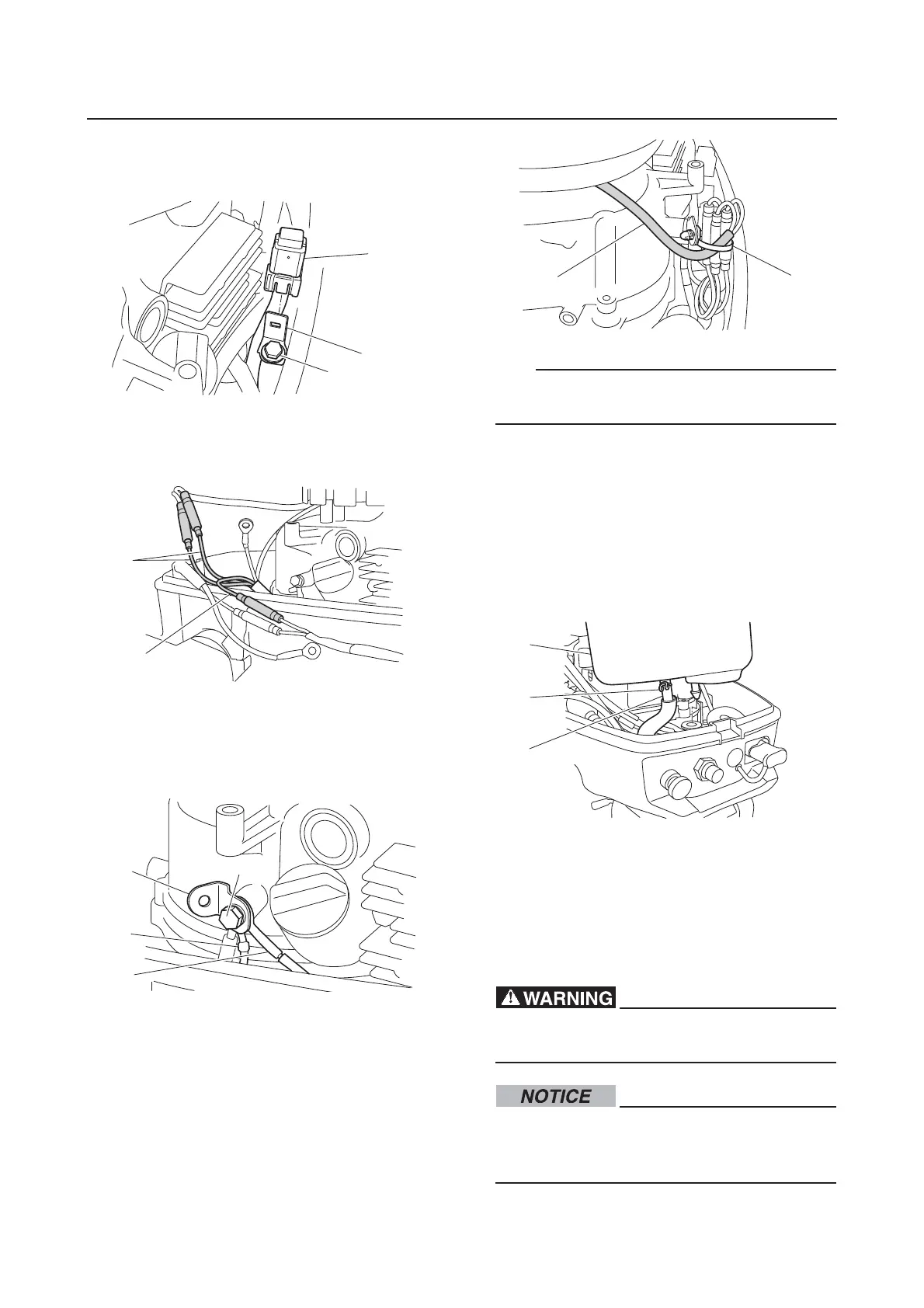

Outboard motor mounting
11. Install the bracket l to the bottom
cowling using the self-tapping bolt m,
and then install the fuse box n.
12. Connect the Rectifier Regulator
connectors of Green (G) leads and Red
(R) lead.
13. Remove the bolt o, and then install the
Rectifier Regulator ground lead b, fuse
ground lead c, and bracket p using the
removed bolt o.
14. Install the holder q, and then fasten the
leads using the holder q.
Check that the lighting coil leads d do not
interfere with the flywheel magnet.
15. Install the included flywheel magnet
(optional). See “Installing the flywheel
magnet”.
16. Connect the hose b, and then fasten it
using the clamp a.
17. Install the fuel tank c.
18. Install the manual starter. See “Installing
the manual starter”.
Improper battery connections or cable
size selection may result in a fire.
If battery connections are reversed, check
the electrical system and replace any
damaged components.
