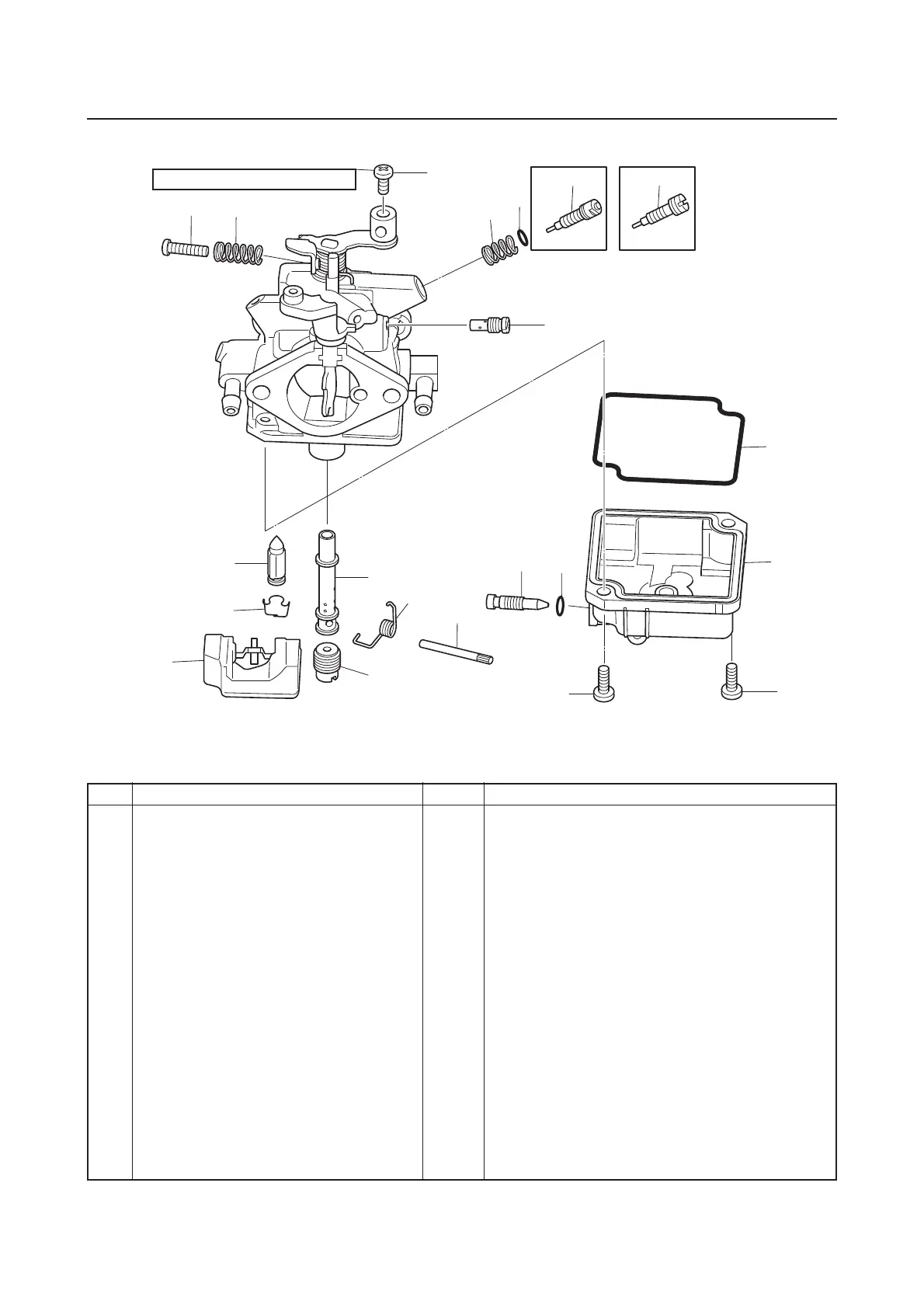

Carburetor
Carburetor
No. Part name Q’ty Remarks
1 Throttle stop screw 1
2Spring 1
3 Throttle link screw 1
4Spring 1
5O-ring 1
/PUSFVTBCMF
6 Pilot screw 1
7 Pilot jet 1
8Gasket 1
/PUSFVTBCMF
9 Float chamber 1
10 Screw 2
11 O-ring 1
/PUSFVTBCMF
12 Drain screw 1
13 Pin 1
14 Spring 1
15 Main nozzle 1
16 Main jet 1
17 Float 1
12
10
11
1
2
5
6
4
19
15
14
13
16
18
17
7
3
10
8
9
1.5 N·m (0.15 kgf·m, 1.11 ft·lb)
A
B
20
Intake silencer / Carburetor
