Hidea HDF6 - Page 91

Fuel pump

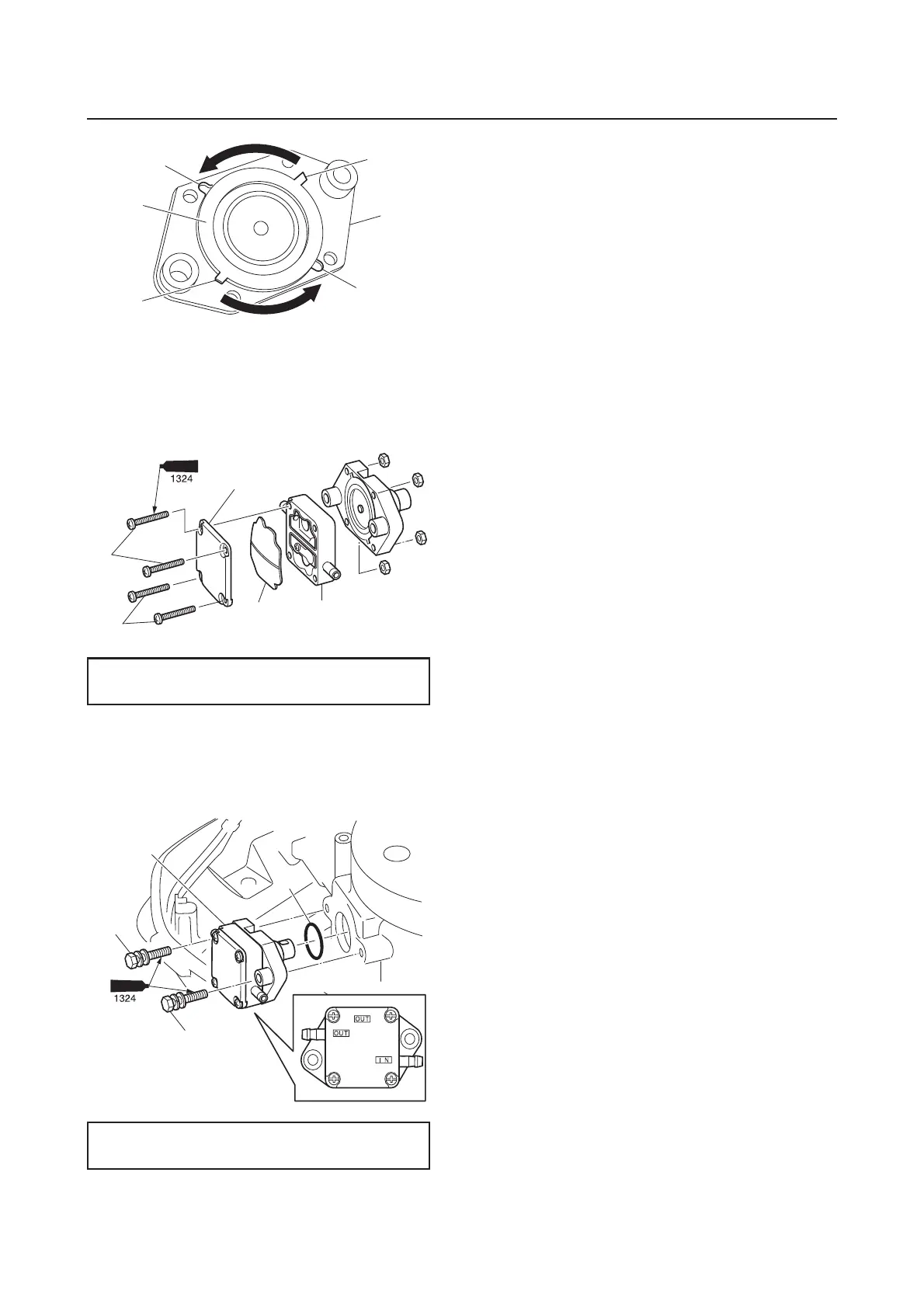

6. Install the fuel pump body 2 i, a ne
w
diaphragm j, and the cover k, and then
tighten the fuel pump screws l to the
specified torque.
Installing the fuel pump
1. Install a new O-ring a and the fuel pump
b, and then tighten the fuel pump bolts
c to the specified torque.
Fuel pump screw l:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
Fuel pump bolt c:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
