4
BXi1208D / BXi1608D / BXi2008D MONO AMPLIFIER APPLICATIONS

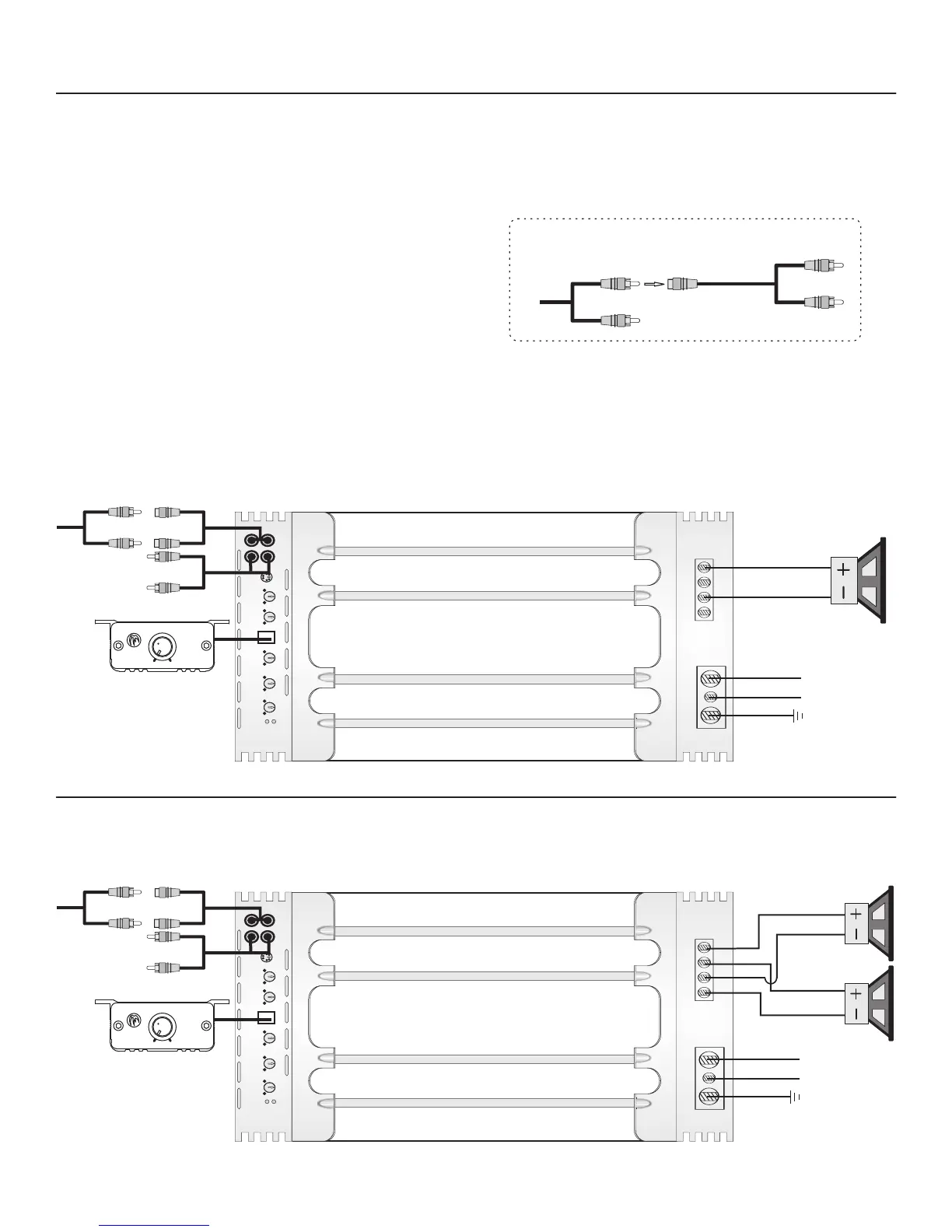

Basic application
Interconnect cable checklist: Minimum final loudspeaker impedance:
- Connect the line inputs to a Radio/CD RCA outputs or line output of the - 1 ohm.
full range primary amplifier with good quality RCA cables. A “Y” adapter
may be needed as shown in the diagram.
- Use at least 16 gauge speaker wiring. These amplifiers have dual
speaker terminals, simplifying the hookup of multiple speakers
Crossover frequency control checklist:
- LOW PASS: 35Hz to 250Hz
- SUBSONIC:15 Hz to 35 Hz
- BASS EQ: 0 to 10dB
- PHASE: 0 to 180 degrees
Level control checklist:
- Refer to the section “Setting up systems after installation for best
performance”
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
Note: You can use the Radio/CD designated mono line output
or a full range stereo line output. For full range stereo line output,
you will need an optional “Y-Adaptor” as shown
*
Dual Subwoofer Application
SPEAKER
+ +
- -
STEREO LINE
OUTPUT
DESIGNATED
MONO LINE INPUT
*
HFR-3
MIN MAXX
BOOST
POWER
PROTECT
L
R
L
R
INPUT OUTPUT BALANCED LEVEL PHASE REMOTE BASS EQ SUB LOW PASS
INPUT
SONIC
9V 0.2V 0 180 0 10dB 15 35Hz 35 250Hz
PARALLEL MONO
SUBWOOFERS
2-OHMS EACH MINIMUM
MONO
SUBWOOFERS
GND REM +12V
POWER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12v
VIA FUSE
MONO
SUBWOOFER
SPEAKER
+ +
- -
STEREO LINE
OUTPUT
DESIGNATED
MONO LINE INPUT
*
HFR-3
MIN MAXX
BOOST
POWER
PROTECT
L
R
L
R
INPUT OUTPUT BALANCED LEVEL PHASE REMOTE BASS EQ SUB LOW PASS
INPUT
SONIC
9V 0.2V 0 180 0 10dB 15 35Hz 35 250Hz
GND REM +12V
POWER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12v
VIA FUSE
To Next Page
