FUNCTIONAL INSTRUCTIONS
Connect the stereo RCA output (L/R) of the head unit
with LINE IN FL/FR of the amplier.
Tweeter
L & R
each 2 – 8 Ohms
Midbass
L & R
each 2 – 8 Ohms
Connect the Remote Controller
with the enclosed cable
Connect the USB port to the Com-
puter with the enclosed USB cable
INTERCONNECTION
• Connect the RCA lineouts of the head unit with the RCA jacks LINE IN of the amplier with appropriate high-value RCA cables.
• Connect the tweeters with the SPEAKER OUTPUT + A - and + B -, the midbasses with + C - and + D - and the kickbasses with + E
and F - by using appropriate high-value cables.
Ensure that the total impedance load on each channel pair A/B, C/D and E/F is not lower than 2 ohms.
REMOTE CONTROLLER
Refer to page 7.
DSP-SOFTWARE SETTINGS
Now connect the DSP amplier via the included USB cable to the computer on which you installed the DSP software before.
Important: Until you have made all basic settings, turn down the volume control of the head unit all the way left to the lowest setting to
avoid damage to the sound system.
STARTING THE PROGRAM
Turn on the head unit (radio) and thus the DSP amplier. Start the DSP
software. Please also refer to the information on page 8 and 9.
Note: Reduce the volume immediately to avoid damage especially to
the tweeters without passive crossovers.
CONFIGURATION OF INPUT CHANNELS
1. Chose under INPUT MODE the setting 2CH.
Note: If you do not operate an additional amplier on the audio output
LINE OUT G/H, no adjustments on channel pair G/H are required.

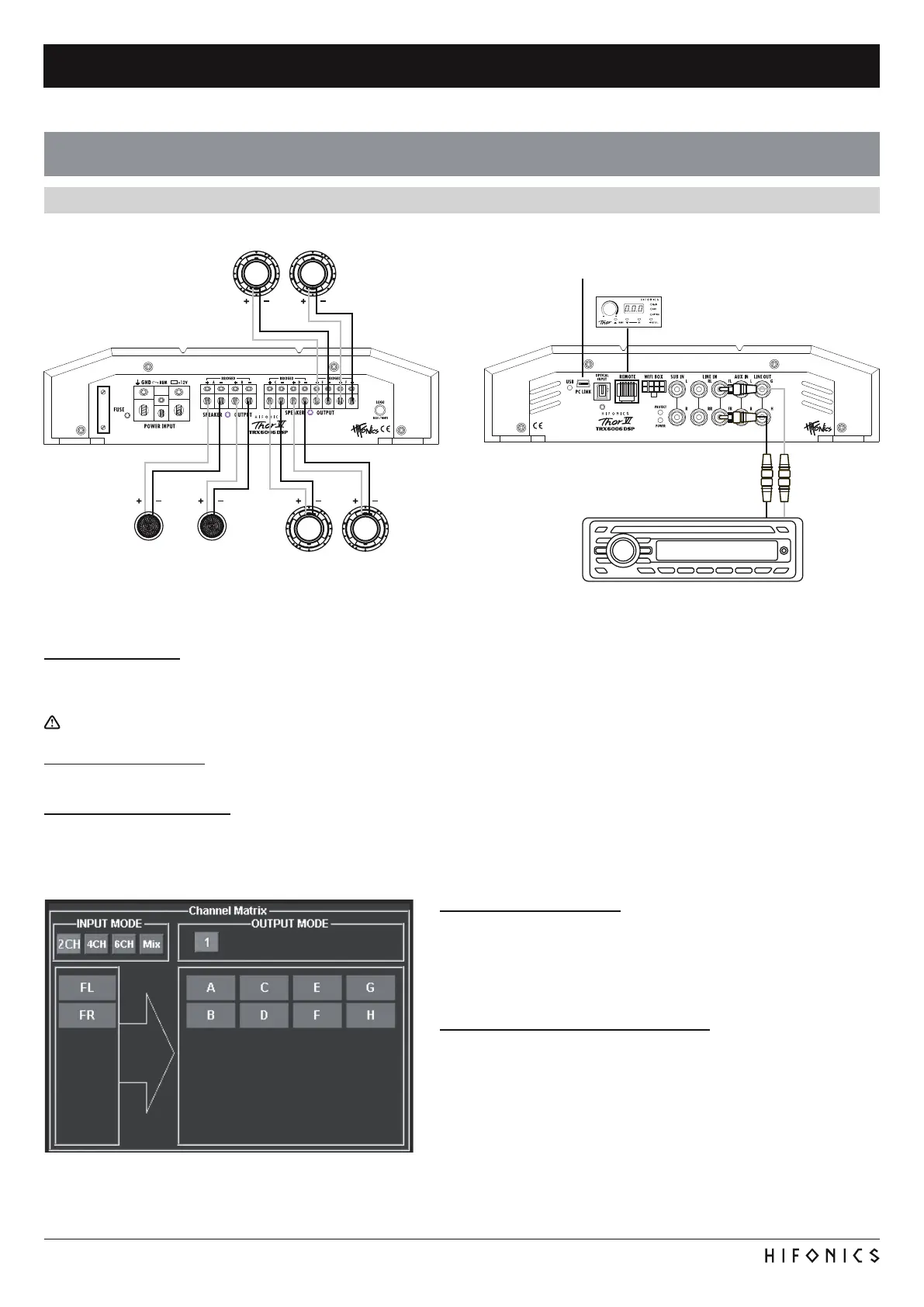

INTERCONNECTION EXAMPLE
6-channel-mode: 3-Way Active System
Kickbass
L & R
each 2 – 8
Ohms
To Next Page
