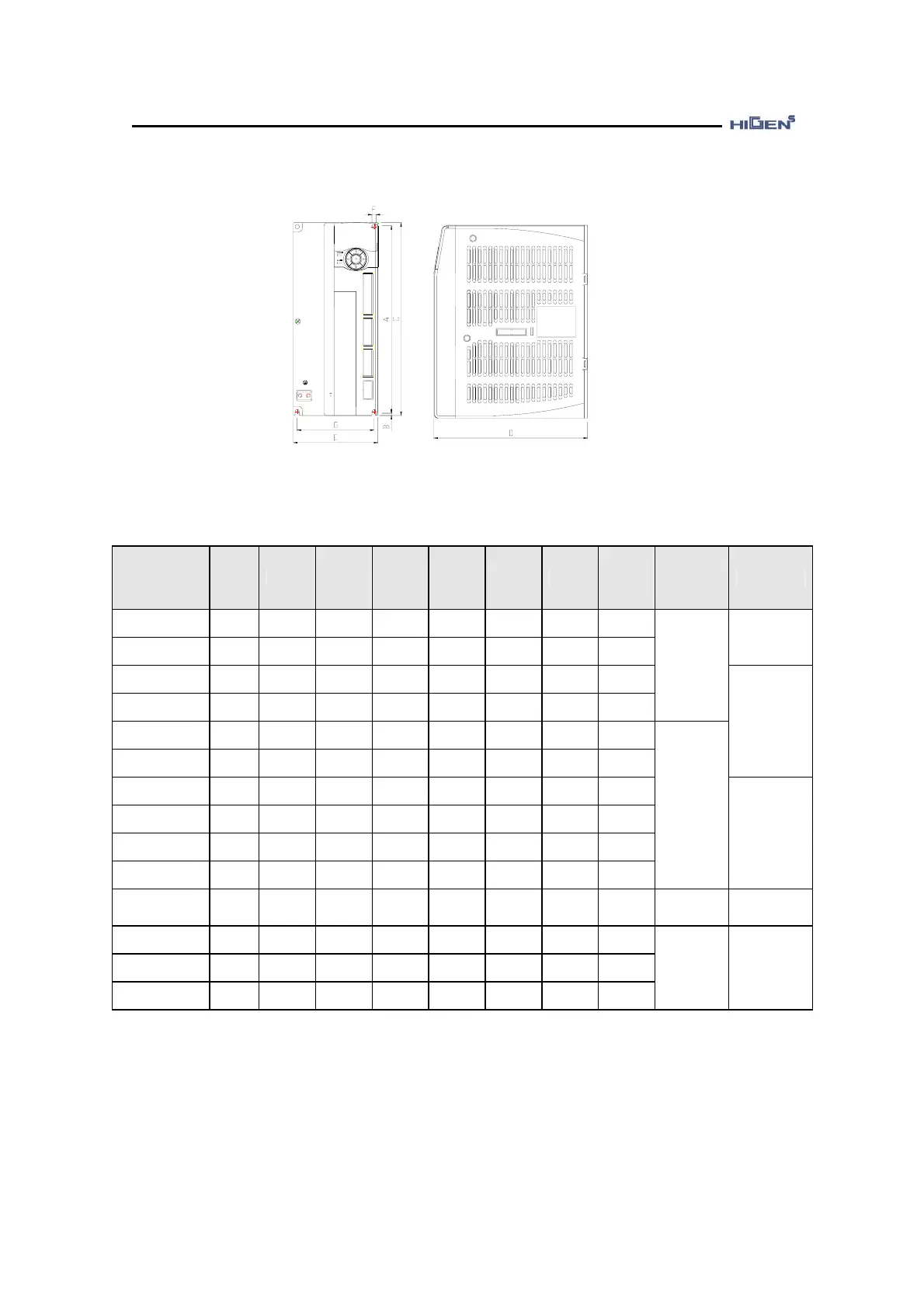

8. External view
8-2
[ External view E ]
CN1
ENC
COM
R
S
T
r
t
P
B
U
V
W
Model A B C D E F G
Weight
[Kg]
Cooling
method
Remarks
FDA7001 149 4.5 160 140 60 5.0 - 1.0
FDA7002 149 4.5 160 140 60 5.0 - 1.0
view A
FDA7004 150 3.0 160 170 90 6.0 70 1.5
FDA7005 150 3.0 160 170 90 6.0 70 1.9
Self
cooling
FDA7008 150 3.0 160 170 90 6.0 70 1.9
FDA7010 150 3.0 160 170 90 6.0 70 1.9
view B
FDA7015 239 5.5 251 225 132 5.2 119 4.3
FDA7020 239 5.5 251 225 132 5.2 119 4.4
FDA7030 239 5.5 251 225 132 5.2 119 4.5
FDA7045 239 5.5 251 225 132 5.2 119 4.6
Forced
cooling
(FAN)
view C
FDA7004B 149 4.0 160 170 60 5.5 - 1.2
Self
cooling
view D
FDA7015B 240 5.0 250 200 110 5.5 100 4.2
FDA7020B 240 5.0 250 200 110 5.5 100 4.3
FDA7030B 240 5.0 250 200 110 5.5 100 4.4
Forced
cooling
(FAN)
view E
