2. Wiring and connection
2-2

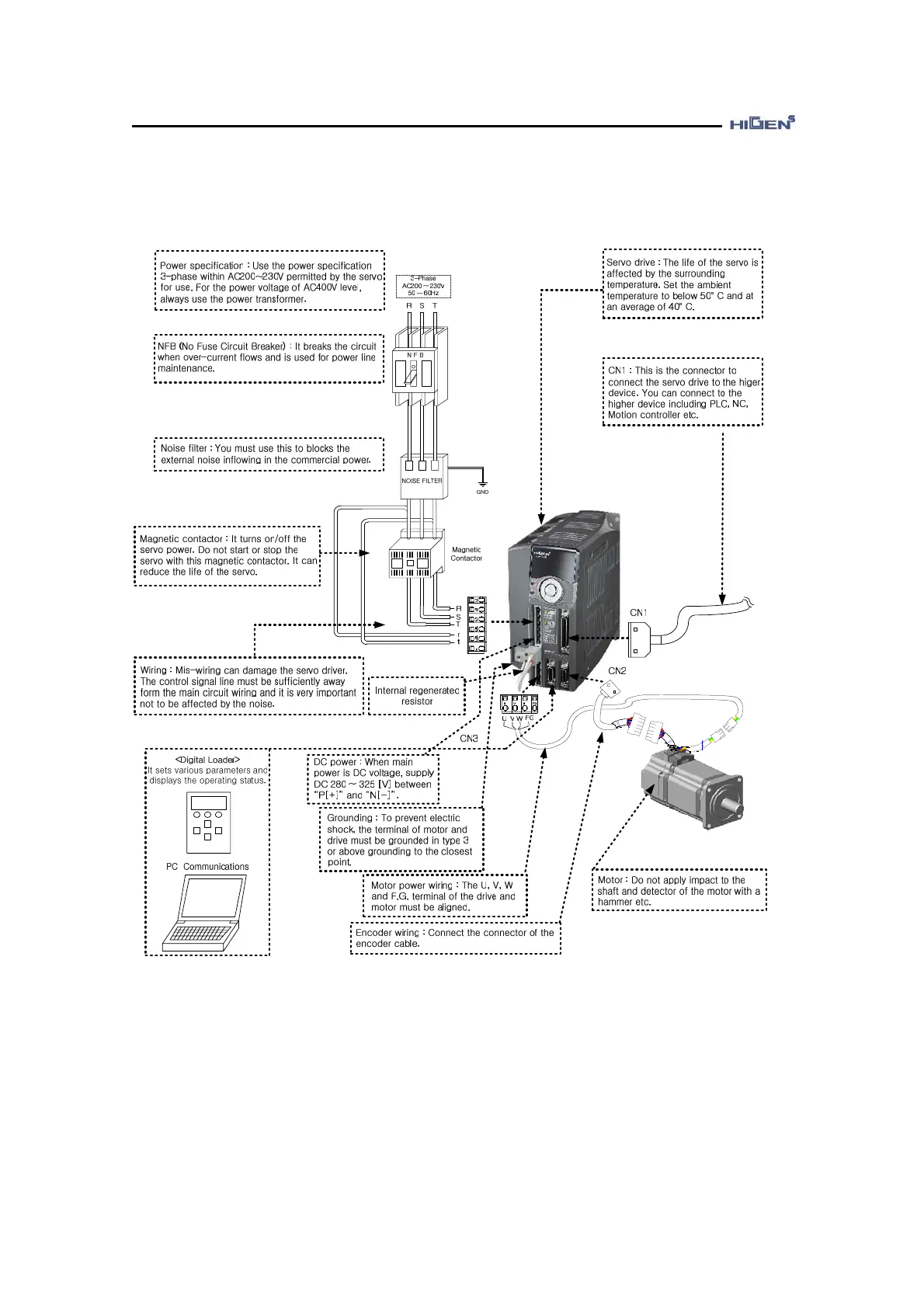

2.1.1 Main circuit and peripheral device connection
◆ At the U, V and W terminal, connect the U, V and W phase of the servo motor.
◆ Ground the FG terminal. Connect the grounding wire of the servo motor with this
terminal.
◆ When main supply is DC voltage, supply DC280~325[V] between “P[+]” and “N[-]”.
◆ Don’t supply AC power supply between “P[+]” and “N[-]”.
