Higen FDA7010 - 1.5. Installation; 1.6. Handling

2. Wiring and connection
2-18

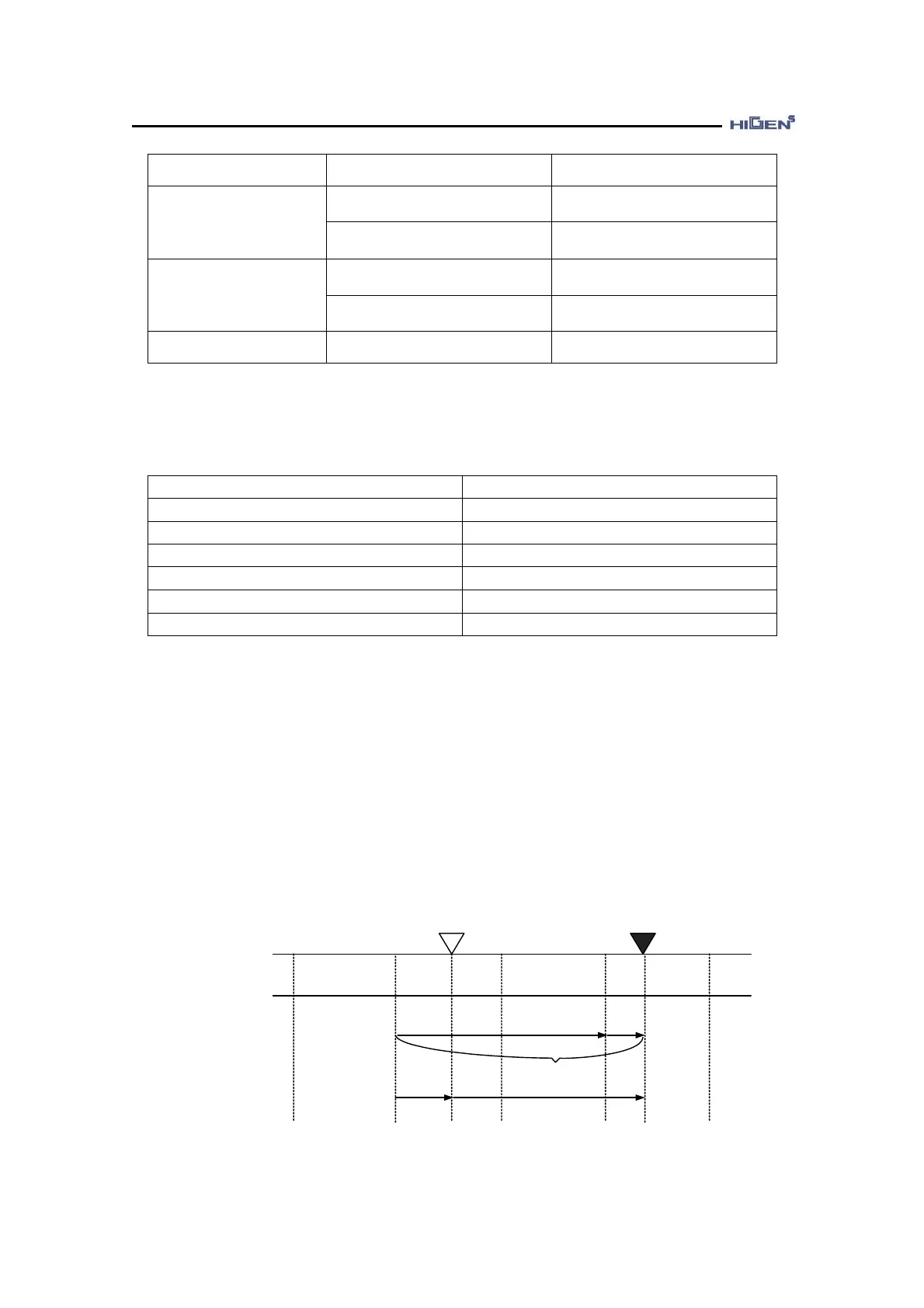

Signal name Condition Signal content
When turning on the power
and initializing
Serial data
Initial incremental pulse
PAO
During normal operation after
initialization is complete
Incremental pulse
When turning on the power
and initializing
Initial incremental pulse
PBO
During normal operation after
initialization is complete
Incremental pulse
PZO Always Origin pulse
① PAO serial data specification
Data transmission method Asynchronous
Baud Rate 9600[bps]
Start bit 1 bit
Stop bit 1 bit
Parity Excellent
Character Code ASCII Code 7 bit
Data Format 8 Character
♥ Outputted revolution in line 5.
② Absolute data content
ⓐ Serial data : This indicates where the motor axis is positioned after several revolutions
from the reference position (Absolute encoder initialized value).
ⓑ Initial incremental indication : It outputs the pulse in the same speed as the revolution
as about 1250 rpm (17 bit serial encoder application and P01-14=16384(4096[pulse])
from the origin position to current motor position of the motor axis.
-1 0 +1 +2 +3
Coordinate
M value
Reference position
(Absolute initialization)
Current position
-1
0+1
+2
