Storage Properties
Total capacity: the combined capacity of each physical disk connected to controller
Configured capacity: the amount of space used for creating arrays
Free Capacity: total amount of space unused

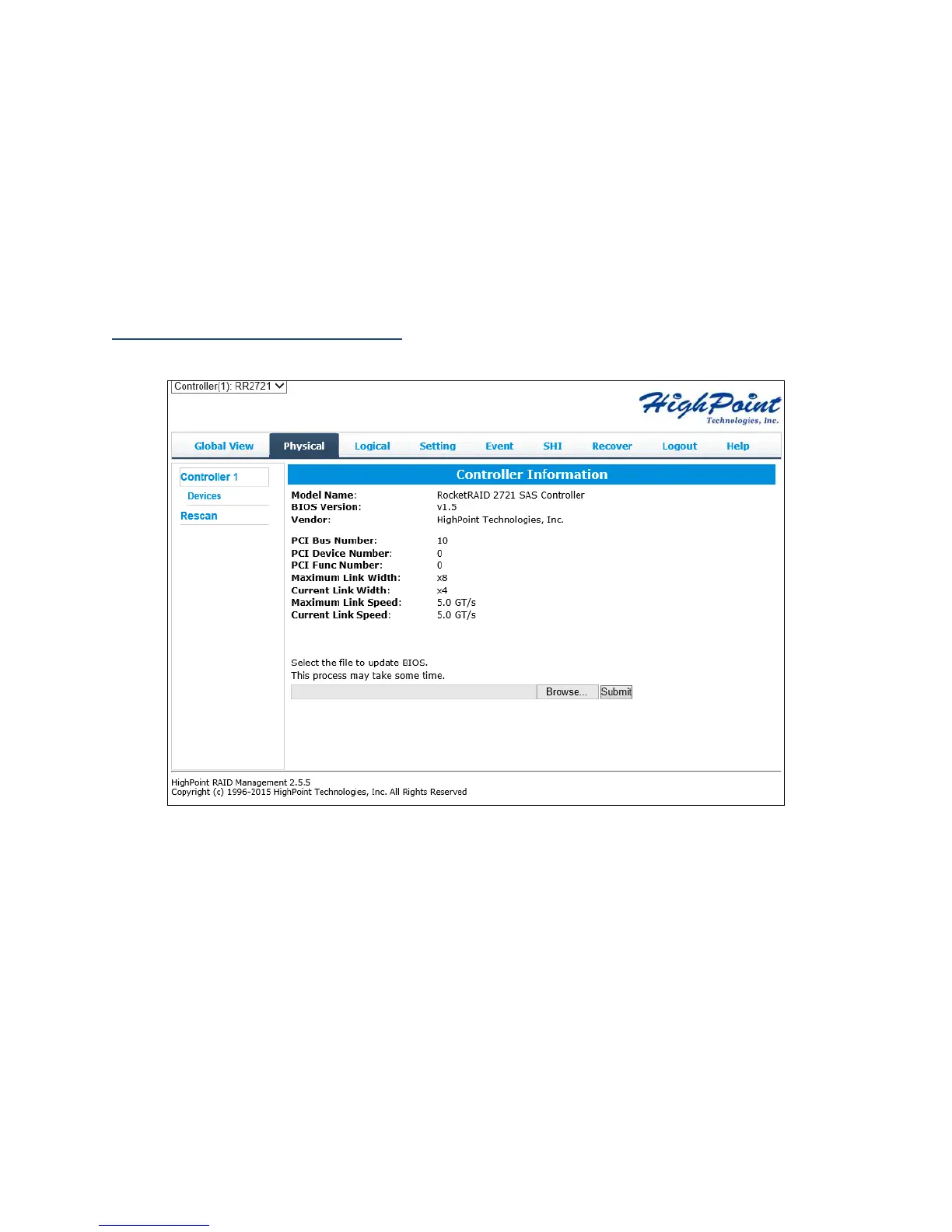

Appendix A-2: Physical Tab
The physical tab shows general and extended information about the controller you are
using. Information about the firmware, BIOS, and operating temperatures are all
located here. This information is useful for identifying what RAID controller model you
have and to make sure you have the most updated version available.
Controller Information: Lists the controller model name, BIOS version, and vendor.
 Model Name: RocketRAID 2711 SAS Controller
 BIOS Version: v1.0
 Vendor: HighPoint Technologies, Inc.
Update Firmware: Allows you to update the controller BIOS through the WebGUI.
