Back Panel Overview
Front Panel
Disk Present LED
Indicates disk is present and available
Disk Status LED
Indicates disk is performing I/O
operations
Enclosure Power LED
Indicated enclosure is properly powered

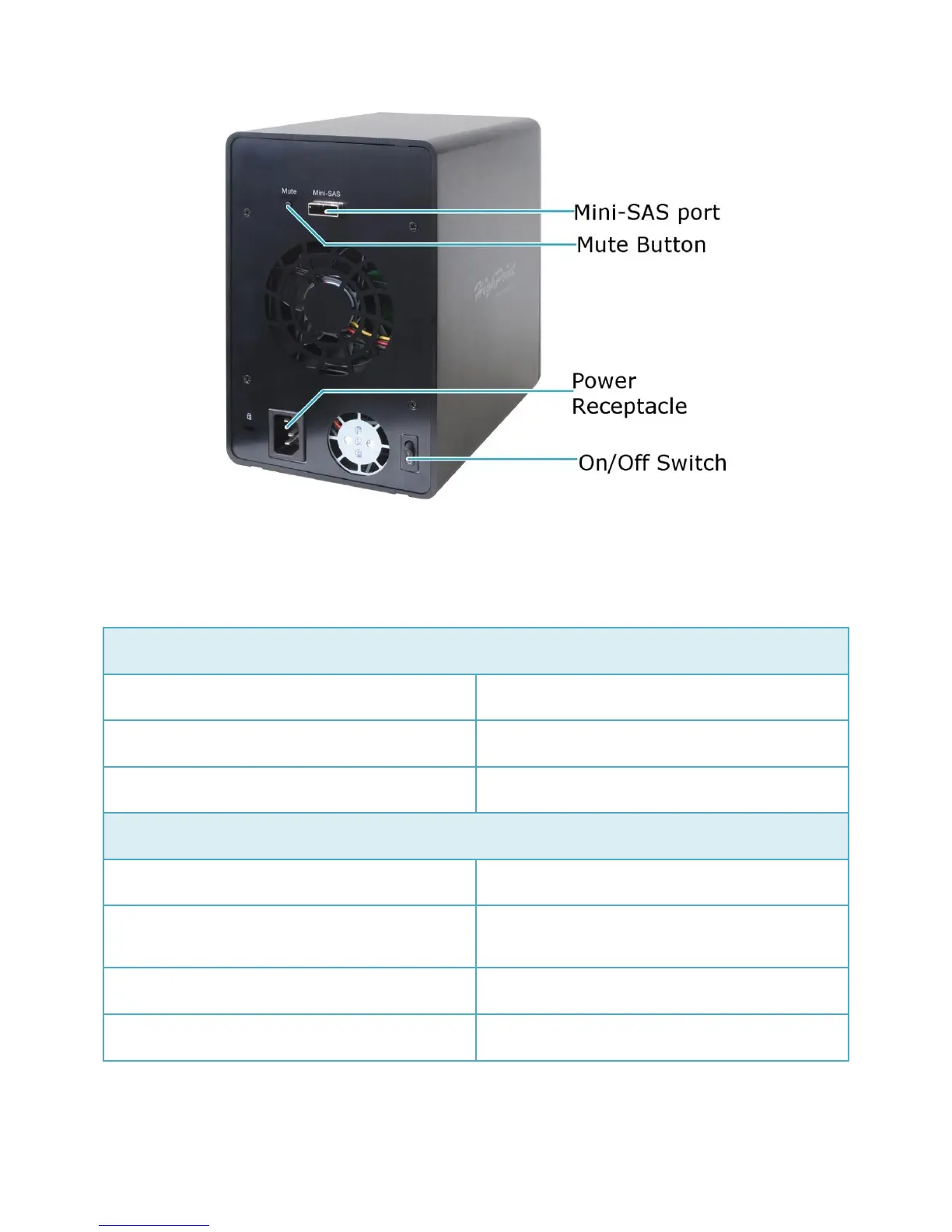

Back Panel
Mini-SAS port
SFF-8088 port
Mute Button
Mutes enclosure alarm only. Alarm
sounds off only when FAN and
TEMPERATURE fail.
Power Receptacle
Connect power cord here
On/Off Switch
O – Off / I - On
