NVMe Drive Installation:
Using the SSD7204 as an example:

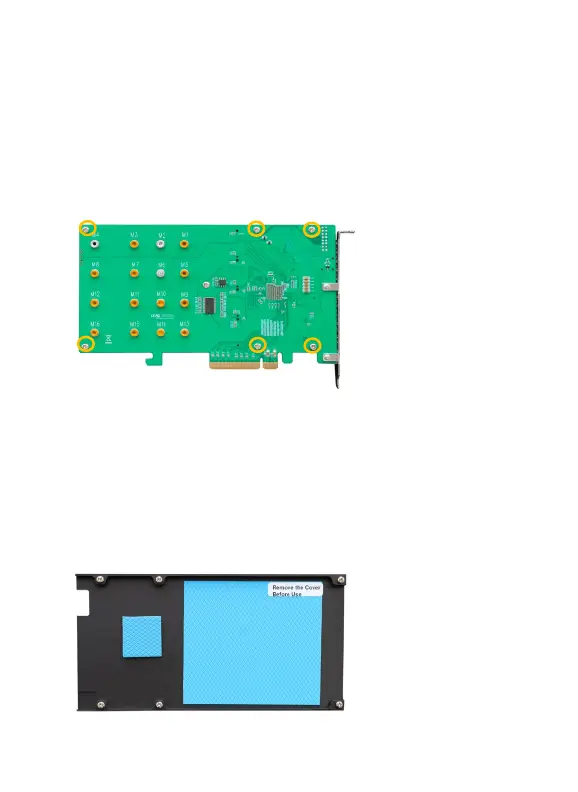

Step 1. On the rear of the SSD7204, remove the six screws that secure
the unit’s heat sink to the PCB.
After removing the screws, carefully remove the heat sink from the
SSD7204.
Step 2. After removing the casing, carefully turn it over to view the
thermal pad. The blue film must be removed from the pad before
reinstalling the panel. This film protects the pad from damage and
foreign objects prior to installation, however, it can also prevent the
thermal pad form conducting the heat away from the NVMe SSDs if we
don't remove it.
