39
Table 5
Use
Clutch Dial
Position
Rotating speed selection (Position of the shift knob)
LOW (Low speed) HIGH (High speed)
Screw
tightening
Machine
screw
1 – 22
For 6 mm or smaller
diameter screws.
For 6 mm or smaller
diameter screws.
Wood screw
1 –
For 8 mm or smaller
nominal diameter screws.
For 6 mm or smaller
nominal diameter screws.
Drilling
Brick
(DV18DBSL)
For 13 mm or smaller
diameters.
For 10 mm or smaller
diameters.
Wood
For 50 mm or smaller
diameters.
For 24 mm or smaller
diameters.
Metal
For drilling with a metal
working drill bit.
12. About Remaining Battery Indicator
Remaining battery power can be
verifi ed by pulling on the switch to
light up the remaining battery indicator
lamp. (Fig. 14)
The indicator lamp will turn off 10
seconds after the switch is released.
The Table 6 shows the state of
remaining battery indicator lamp and
the battery remaining power.
Table 6
State of lamp Battery Remaining Power
The battery remaining power is enough.
The battery remaining power is a half.
The battery remaining power is nearly empty.
Re-charge the battery soonest possible.
As the remaining battery indicator shows somewhat diff erently depending on ambient
temperature and battery characteristics, read it as a reference.
NOTE
Do not give a strong shock to the display panel or break it. It may lead to a trouble.

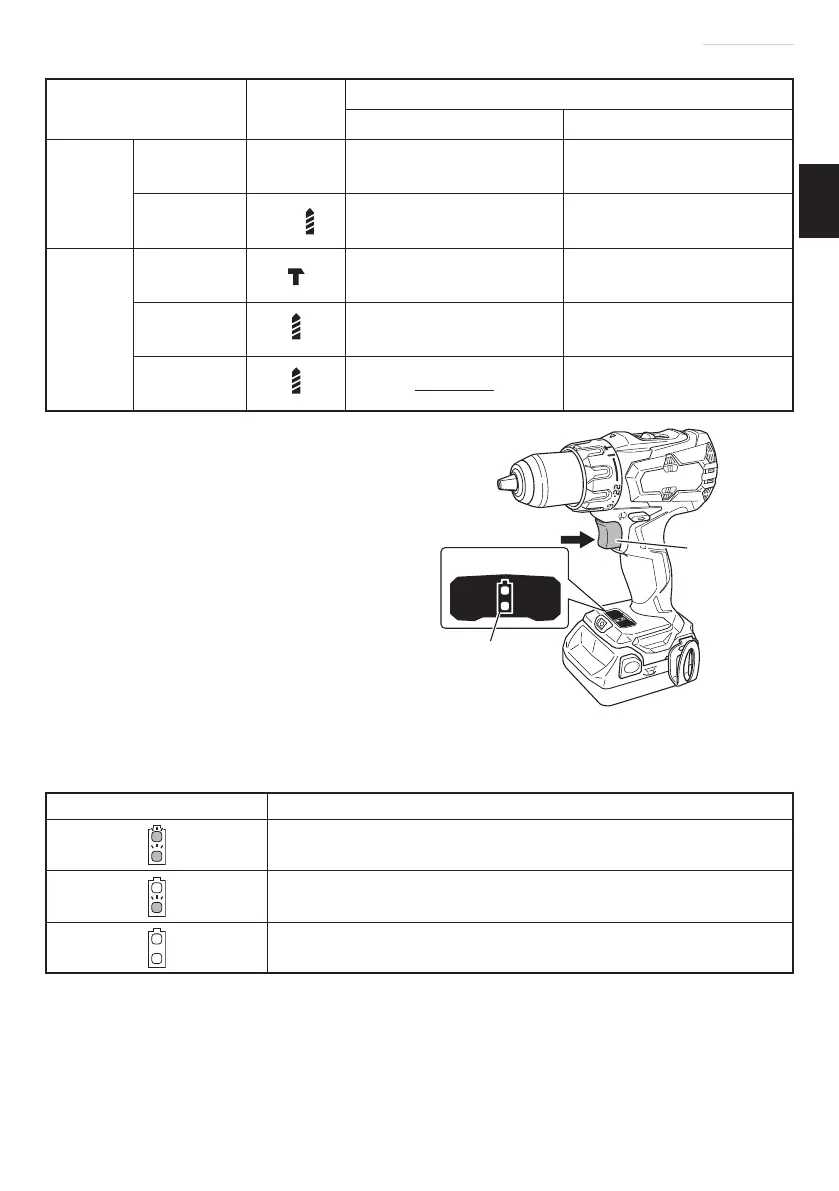

Fig. 14
Display panel
Remaining battery
indicator lamp
Switch trigger
