HIKVISION 7604NI-K1B Quick Start Guide

Network Video Recorder Quick Start Guide
15
Chapter 2 Installation and Connections
2.1 NVR Installation
During installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.
8. Environmental humidity should be within the range of 10% to 90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD
should be used for this installation.
Tools Required: Screwdriver.
2.2.1 DS-9600NI Series
Purpose:
The following section introduces the HDD installation for the DS-9600NI-I8 and DS-9600NI-I16 series NVR.
Take the example of DS-9616NI-I16 series to describe installation steps.
Steps:
1. Fasten the hard disk mounting handle to the hard disk with screws.

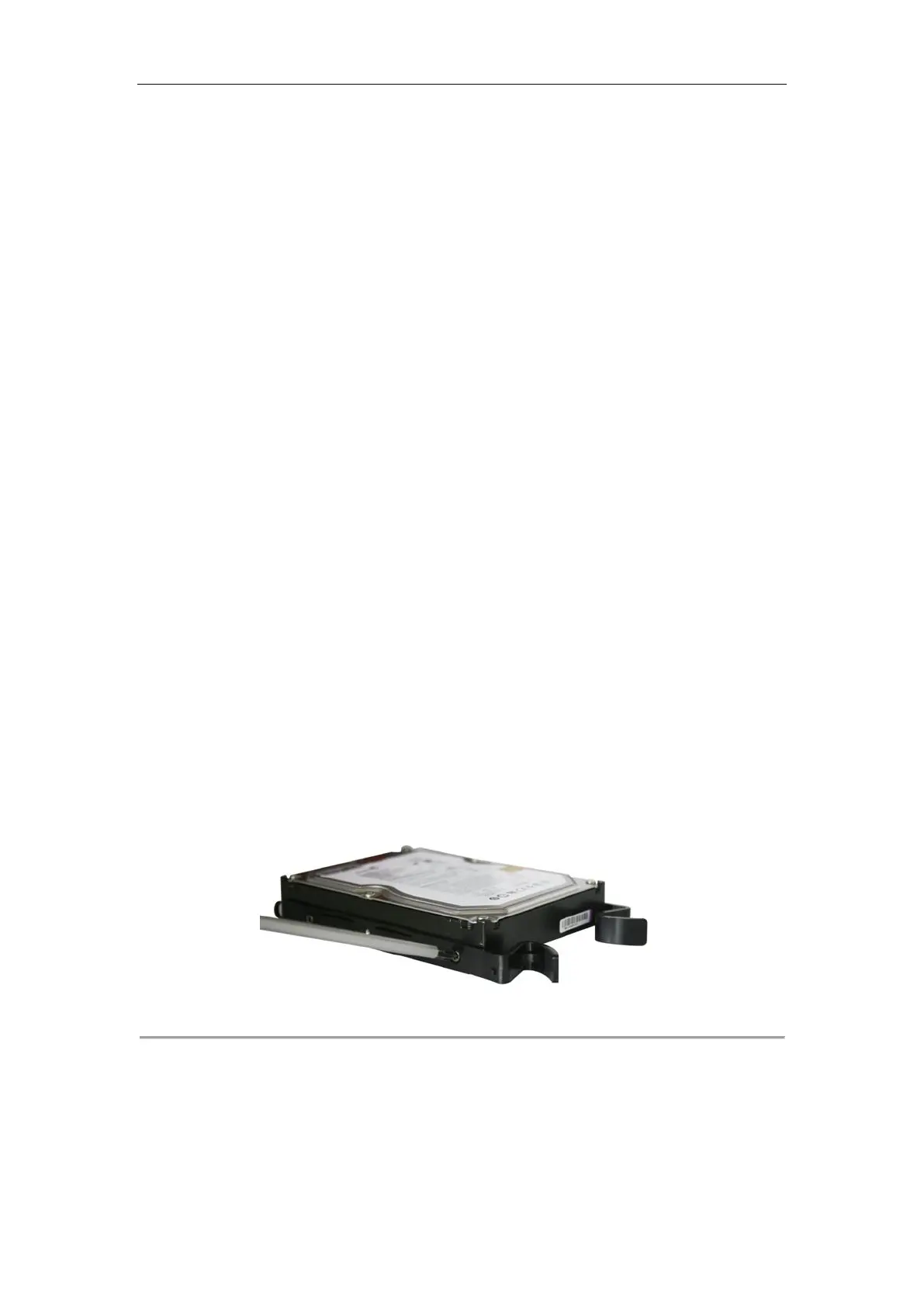

Figure 2. 1 Fasten Hard Disk
2. Insert the key and turn in clockwise direction to open the panel lock.

HIKVISION 7604NI-K1B Specifications

General

Model	7604NI-K1B
HDMI Output Resolution	4K (3840 × 2160)
VGA Output Resolution	1920 × 1080
Decoding Format	H.265+/H.265/H.264+/H.264
Video Compression	H.265+/H.265/H.264+/H.264
Max Incoming Bandwidth	40 Mbps
HDD Bays	1
Storage Interface	SATA
Max HDD Capacity	6TB
Max Storage Capacity	6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC, 1.5 A
Consumption	≤ 10 W (without HDD)
Operating Humidity	10% to 90%
Synchronous Playback	4-ch
Type	NVR
Channel Capacity	4
Network Protocol	TCP/IP, DHCP, DNS, DDNS, NTP, UPnP
Network Interface	1 × RJ-45 10/100/1000 Mbps
Working Temperature	-10°C to +55°C (14°F to 131°F)
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Video Output	1 × VGA, 1 × HDMI
