HIKVISION AE-DI5042-G4 User Manual

G4 Mobile Recorder• Installation Guide and Platform Settings
7

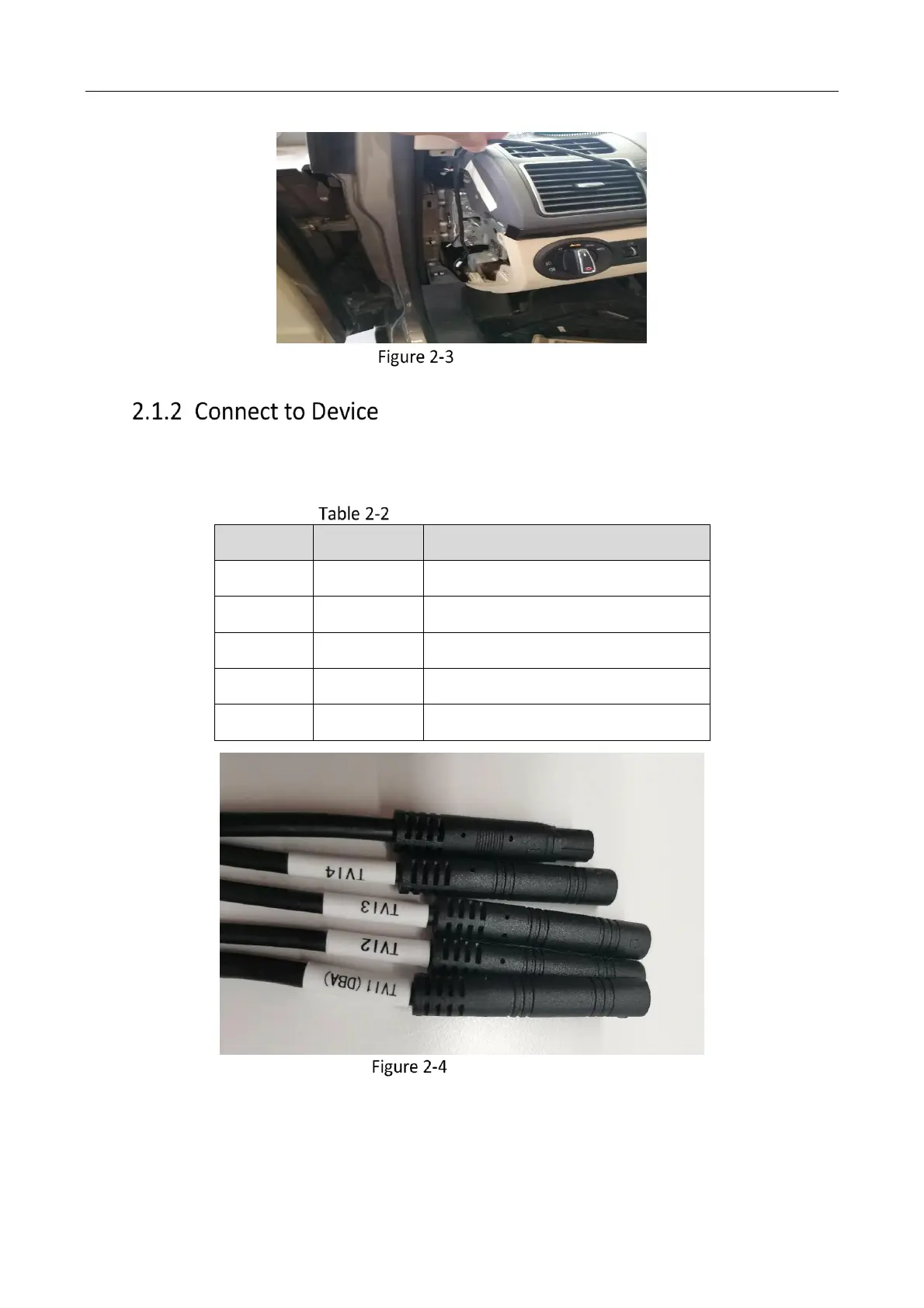

Route Cable
There are five cables extended from the G4 device. Identify the cable function from the following
table.
Function of G4 Device Cables
Label
Interface
Function
/
8-Pin Plug
Connects to power.
TVI1 (DBA)
4-Pin Plug
Connects to the DBA camera.
TVI2
4-Pin Plug
Connects to the front row camera.
TVI3
4-Pin Plug
Connects to the back row camera.
TVI4
4-Pin Plug
Connects to the backup camera.
Device Cables

HIKVISION AE-DI5042-G4 Specifications

General

Product color	Black
GPS (satellite)	Yes
Number of cameras	1
Main camera sensor	CMOS
Maximum frame rate	25 fps
Supported video modes	1080p
Main camera resolution	1920 x 1080 pixels
Main camera sensor size	1/2.5 \
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Built-in display	No
Image formats supported	JPEG
Package depth	153 mm
Package width	223 mm
Package height	63 mm
Package weight	600 g
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	82 mm
Width	124 mm
Height	33 mm
Weight	300 g
