G4 Mobile RecorderInstallation Guide and Platform Settings
6

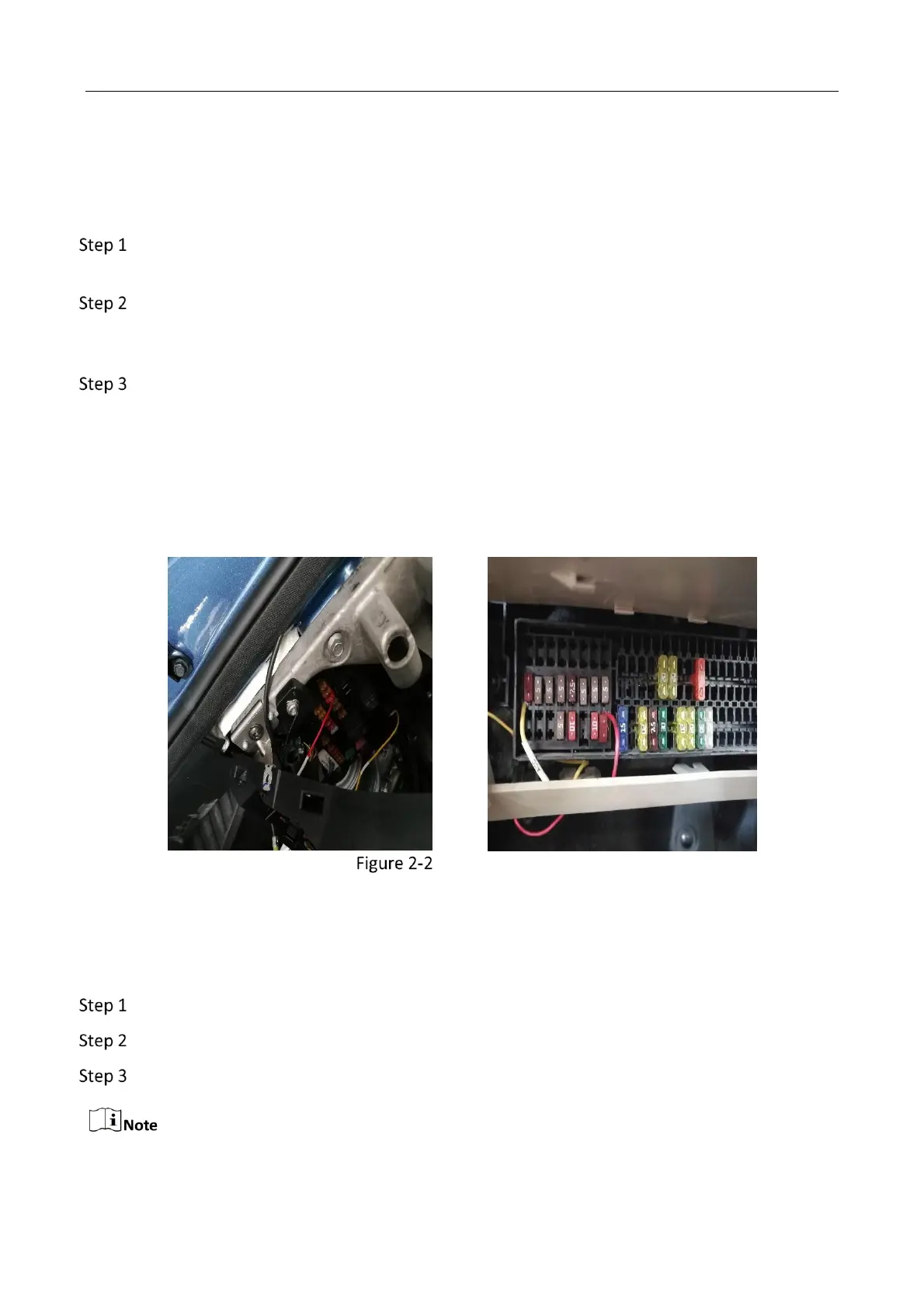

Connect to Power
Steps:
Find the vehicle signal cables: power anode, power cathode (ground), and ignition signal
(ACC ON).
Use the electro probe to test whether the cable is powered after turning off the vehicle. If
the current is detected, this cable is connected to constant power and then you can test the
voltage.
Identify the ACC signal cable: Test the cable with the electro probe when the vehicle is
turned off and under ACC gear respectively. If no current is detected when the vehicle is
turned off, but the current is detected under the ACC gear, this cable is an ACC cable. Then
you can test the voltage. Make sure the vehicle power cord and ACC power cord voltage is
normal when the vehicle is turned off or ignited. You can take it as the power supply point
for the device.
The following figures are only for illustration. The actual vehicle model prevails.
Connect to Power
Connect G4 Device to Power
Steps:
Pull the power cord out gently from the fuse box and lead the cable up along the A pillar.
Route the cable closely along the windshield and connect it to the G4 device.
Hide the cable on the vehicle roof.
Route the DBA camera cables with the same method.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION AE-DI5042-G4 and is the answer not in the manual?

HIKVISION AE-DI5042-G4 Specifications

General IconGeneral
Product colorBlack
GPS (satellite)Yes
Number of cameras1
Main camera sensorCMOS
Maximum frame rate25 fps
Supported video modes1080p
Main camera resolution1920 x 1080 pixels
Main camera sensor size1/2.5 \
Wi-Fi frequency2.4 GHz
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Built-in displayNo
Image formats supportedJPEG
Package depth153 mm
Package width223 mm
Package height63 mm
Package weight600 g
Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)10 - 95 %
Weight and Dimensions IconWeight and Dimensions
Depth82 mm
Width124 mm
Height33 mm
Weight300 g
