100

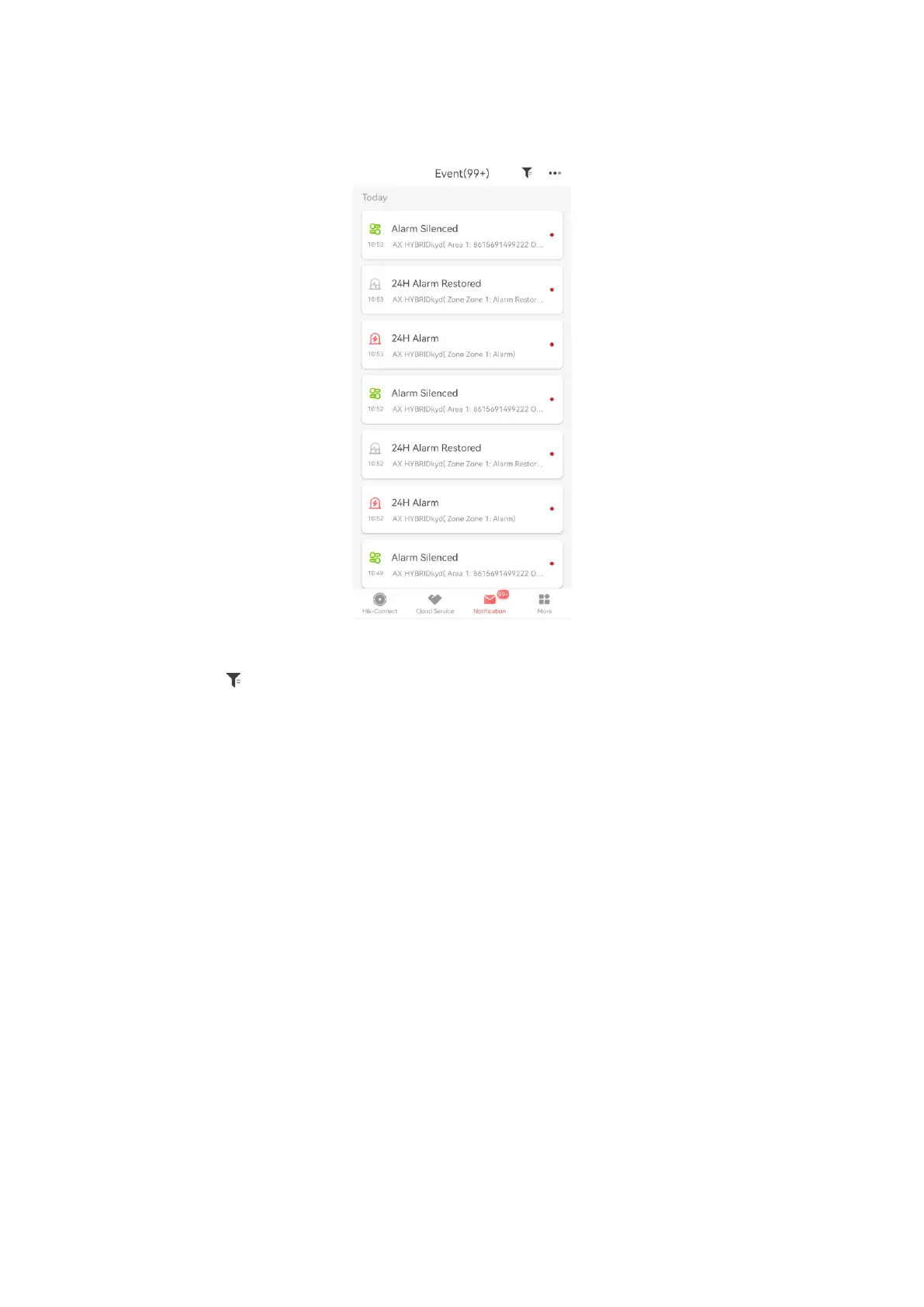

2. Select an alarm and you can view the alarm details.
3. Optional: If the zone has linked a camera, you can view the playback when the alarm is
triggered.
4. Optional: Tap to search events by dates or devices.
3.4 Report to ARC (Alarm Receiver Center)
AX HYBRID PRO wireless control panel is designed with transceiver built in following the guidance
of EN 50131-10 and EN 50136-2. Category DP2 is provided with primary network interface of
LAN/Wi-Fi and secondary network interface of GPRS or 3G/4G LTE. ATS (Alarm Transmission
system) is designed to always use LAN/Wi-Fi network interface when available to save mobile data
usage. The secondary network interface provides resilience and reliability during mains power
failure.
Setup ATS in Transceiver of Receiving Center
Steps:
1. Login to the web client of the alarm receiver.
2. Click Configuration→ IP Reception, and create a receiving server as shown below.
