HIKVISION DS-2AE7232TI-A Quick Start Guide

HD-TVI Speed Dome·Quick Start Guide
15

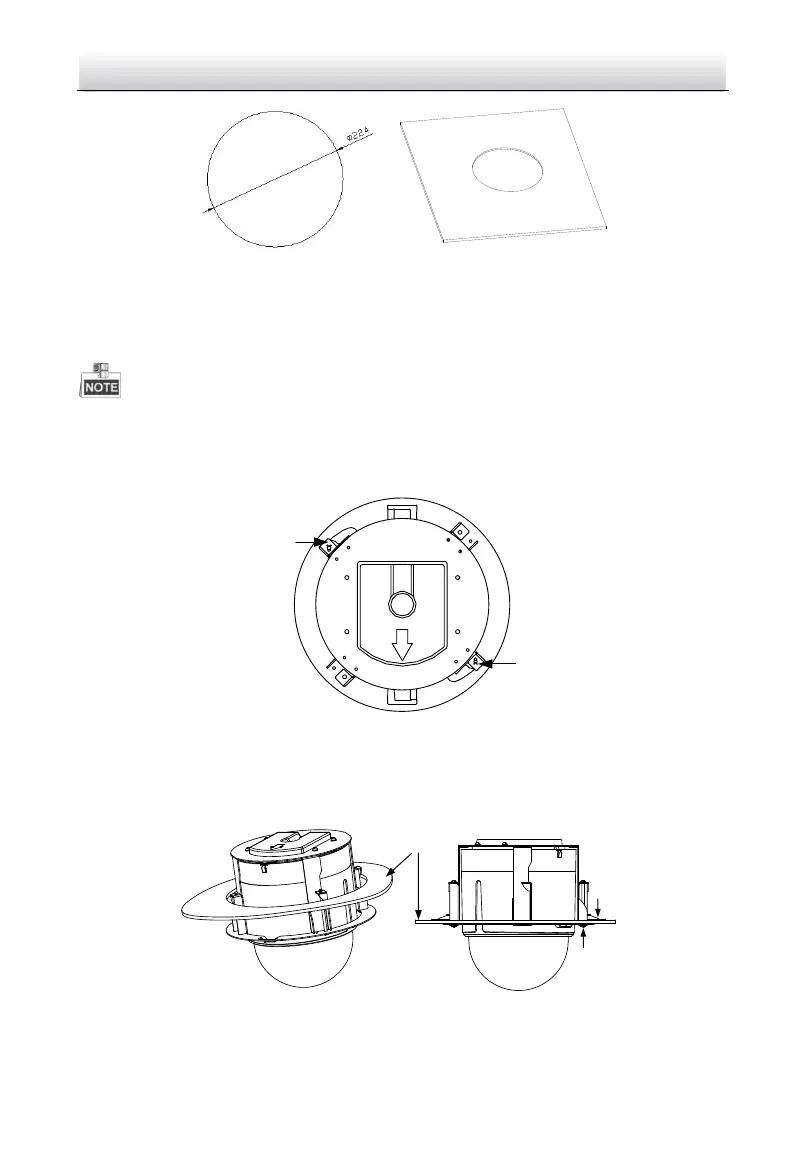

Figure 2-2 Draw and Cut Hole on the Ceiling
6. Connect the cables.
Make sure the video cable and control wire have been connected to the corresponding interfaces.
Connect the power cable and the red LED indicator turns on when the power is on.
Please turn the power off after checking the speed dome.
7. Install the speed dome.
(1) Loosen the two lock screws on both sides of the back box and make the locks in internal
position, as shown in the following figure:
Lock
Lock
Figure 2-3 Locks and Lock Screws
(2) Push the back box into the mounting hole in the ceiling
(3) Tighten the lock screws with the screwdriver and the locks will automatically rotate outwards
to secure the in-ceiling mount to the ceiling.
Ceiling
Lock
Lock
Figure 2-4 Install the back box

HIKVISION DS-2AE7232TI-A Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	CCTV security camera
PTZ modes	5 Pattern
PTZ protocols	Pelco-P/D
Languages support	English
Number of languages	1
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Digital zoom	16 x
Optical zoom	32 x
Focal length range	4.8 - 153 mm
Maximum aperture number	4.6
Minimum aperture number	1.6
Built-in HDD	No
LED type	IR
Night vision distance	150 m
AC input voltage	24 V
Power source type	AC
Power consumption (max)	40 W
Pan range	0 - 360 °
Pan speed	160 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/10000 - 1 s
Minimum illumination	0 lx
Interface	BNC
Operating temperature (T-T)	-30 - 65 °C

Weight and Dimensions

Height	353.4 mm
Weight	4500 g
Diameter	220 mm
