HIKVISION DS-2AE7232TI-A Quick Start Guide

HD-TVI Speed Dome·Quick Start Guide
14
2 In-door Mounting Applications
Before you start:
 For cement wall, you need to use the expansion screw to fix the mount. The mounting hole of
the expansion pipe on the wall should align with the mounting hole on the mount.
 For wooden wall, you can just use the self-tapping screw to fix the mount.
2.1 5-inch Speed Dome In-ceiling Mounting
Applications
Before you start:
The in-ceiling mounting is applicable to the indoor ceiling construction. The followings are the
mandatory precondition for mounting:
 The height of the space above the ceiling must be more than 250mm.
 The thickness of the ceiling must ranges from 5 to 40mm.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome and
its accessories.
Steps:
1. Rotate the lower dome counterclockwise to separate it from the back box as shown in Figure 2-1.
2. Remove the protective lens cover, foam and sticker from the dome drive.
3. Set the address and baudrate for the analog speed dome. Please refer to the Section 1.2.1 5-inch
Speed Dome Settings for DIP switch settings.
4. Attach lower dome to the back box, and rotate clockwise to secure it.
Protective Foam
Sticker
Lower Dome
Back Box

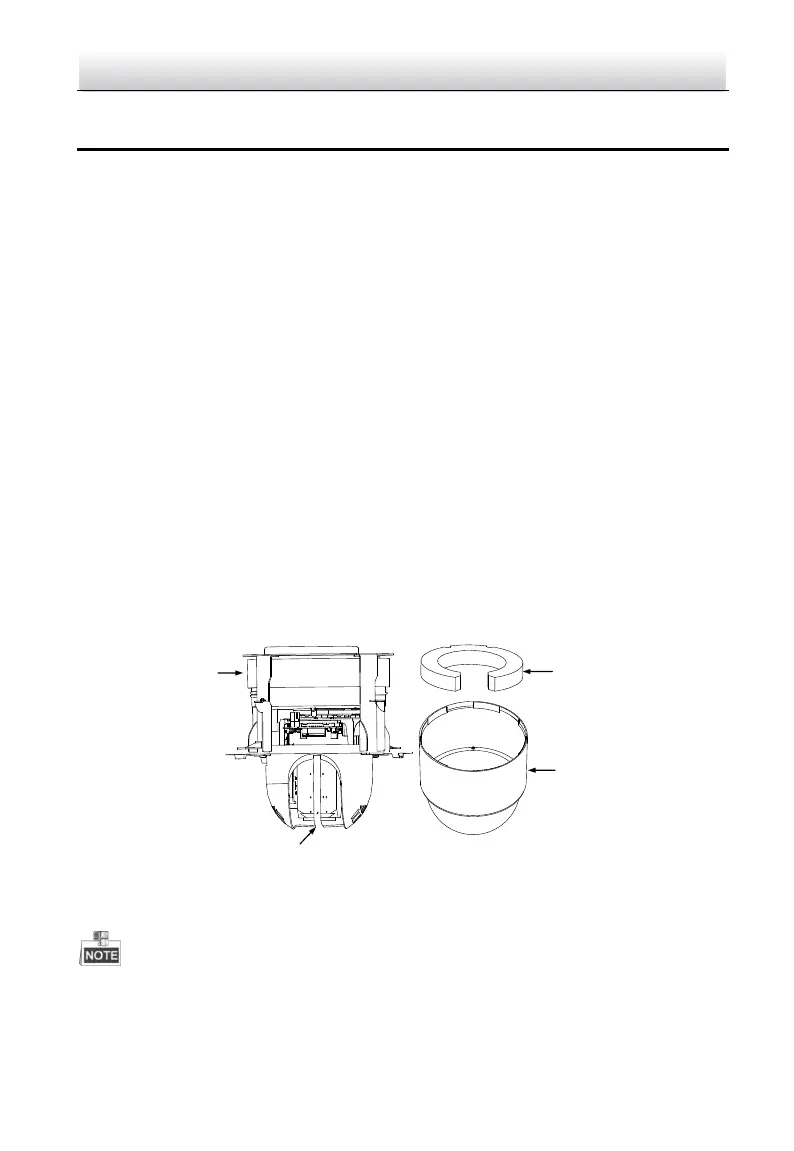

Figure 2-1 Remove the Protective Accessory
5. Drill a hole on the ceiling according to the drill template (supplied).
±2mm of the diameter of the circle is tolerable.

HIKVISION DS-2AE7232TI-A Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	CCTV security camera
PTZ modes	5 Pattern
PTZ protocols	Pelco-P/D
Languages support	English
Number of languages	1
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Digital zoom	16 x
Optical zoom	32 x
Focal length range	4.8 - 153 mm
Maximum aperture number	4.6
Minimum aperture number	1.6
Built-in HDD	No
LED type	IR
Night vision distance	150 m
AC input voltage	24 V
Power source type	AC
Power consumption (max)	40 W
Pan range	0 - 360 °
Pan speed	160 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/10000 - 1 s
Minimum illumination	0 lx
Interface	BNC
Operating temperature (T-T)	-30 - 65 °C

Weight and Dimensions

Height	353.4 mm
Weight	4500 g
Diameter	220 mm
