HIKVISION DS-2AE7232TI-A Quick Start Guide

HD-TVI Speed Dome·Quick Start Guide
1
1 Installation
Before you start:
Check the package contents and make sure that the device in the package is in good condition and
all the assembly parts are included.
There are several ways to install the analog speed dome. The wall mounting is taken as an example
below.
1.1 Connecting the Cables
Please turn the power off before connecting the cables.
The cable interfaces of speed dome are shown in following figure. The cables are distinguished by
different colors. The labels attached on the cables are for identification.
The cables may vary according to different camera models. Please refer to the actual device.
R
E
D
A
C
2
4
V
Y
E
L
L
O
W
/
G
R
E
E
N
B
L
A
C
K
A
C
2
4
V
Y
E
L
L
O
W
R
4
8
5
-
O
R
A
N
G
E
R
4
8
5
+
VI E OD
Alarm
HD-TVI Video Output
Power Supply
VI E OD
CVBS Video Output
RS485

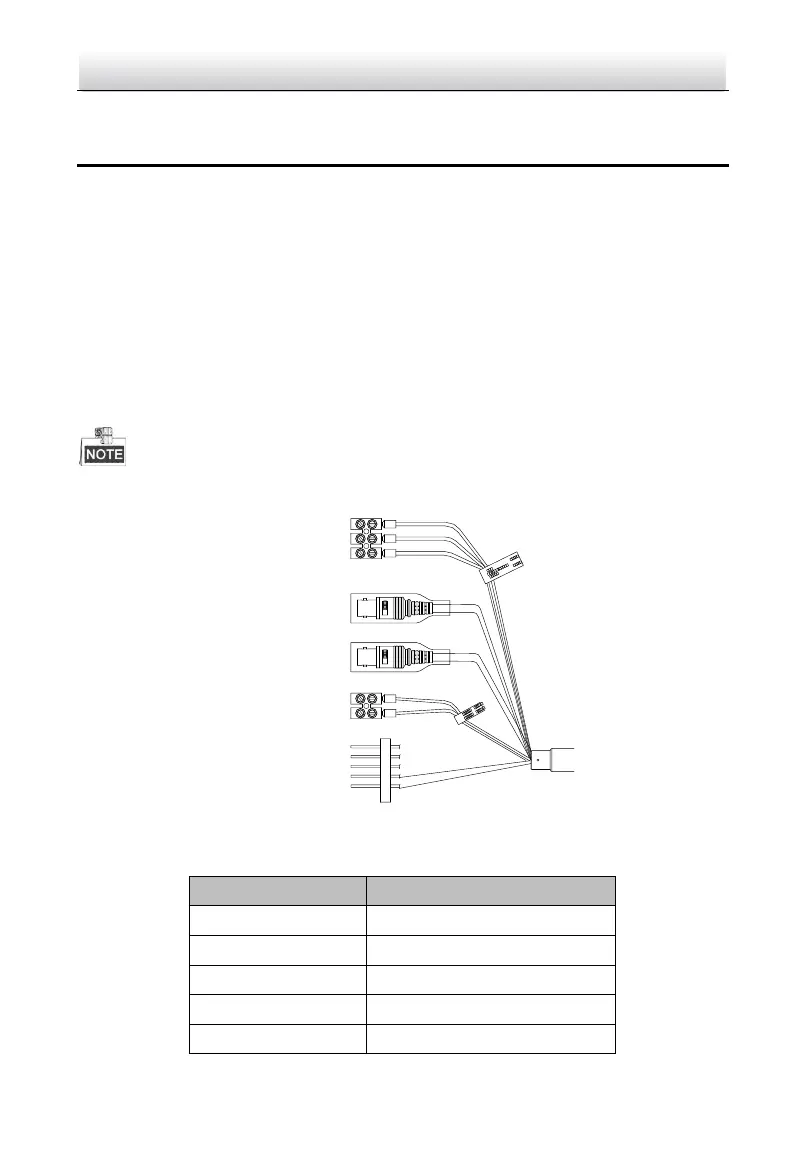

Figure 1-1 Cables
Table 1-1 Cables Description
Name
Description
Power Supply
AC24V/DC12V
HD-TVI Video Output
HD-TVI and coaxial video output
CVBS Video Output
SD analog video output
RS485
485 control
Alarm
Alarm input and alarm output

HIKVISION DS-2AE7232TI-A Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	CCTV security camera
PTZ modes	5 Pattern
PTZ protocols	Pelco-P/D
Languages support	English
Number of languages	1
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Digital zoom	16 x
Optical zoom	32 x
Focal length range	4.8 - 153 mm
Maximum aperture number	4.6
Minimum aperture number	1.6
Built-in HDD	No
LED type	IR
Night vision distance	150 m
AC input voltage	24 V
Power source type	AC
Power consumption (max)	40 W
Pan range	0 - 360 °
Pan speed	160 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/10000 - 1 s
Minimum illumination	0 lx
Interface	BNC
Operating temperature (T-T)	-30 - 65 °C

Weight and Dimensions

Height	353.4 mm
Weight	4500 g
Diameter	220 mm
