HIKVISION DS-2CC51A7N-VP User Manual

Day/Night High-definition Dome Camera·User Manual
8
8

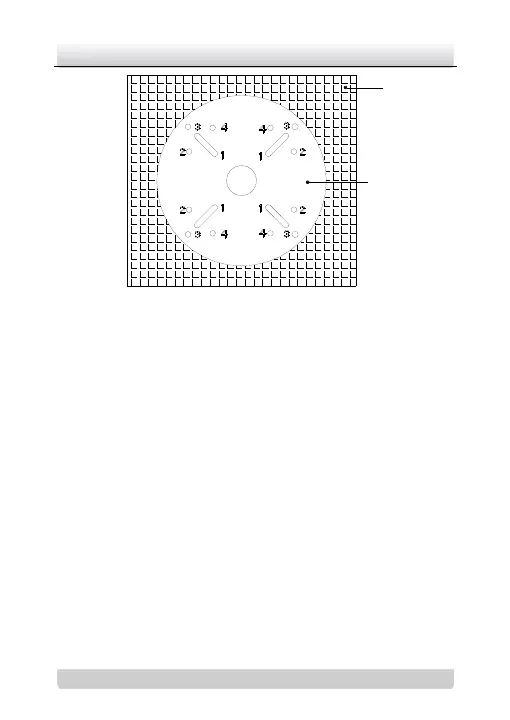

Figure 2-3 The Drill Template
3. If you want to route the cables inside the ceiling, drill a hole in
the ceiling according to the circle in the centre of the template.
Skip this step, if you want to route the cables on the surface of
the ceiling.
4. Attach the back box to the ceiling by aligning the holes of the
back box with the holes on the drill template.
5. Secure the back box with the supplied screws as shown in
Figure 2-4.
Drill Template
Ceiling

HIKVISION DS-2CC51A7N-VP Specifications

General

Brand	HIKVISION
Model	DS-2CC51A7N-VP
Category	Security Camera
Language	English
