HIKVISION DS-2CD2012-I Quick Operation Guide

Network Bullet Camera·Quick Operation Guide
16
16

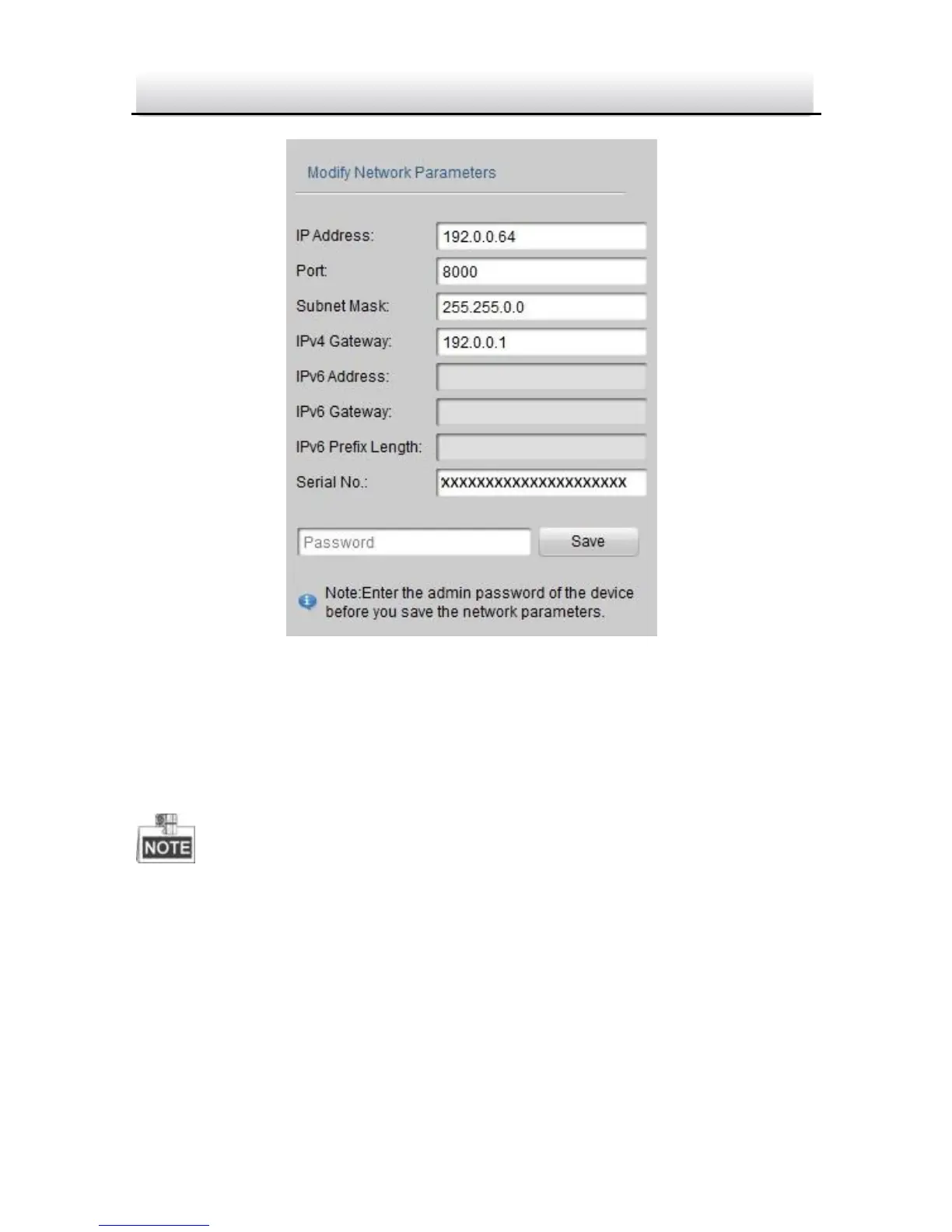

Modify Network Parameters Figure 3-4
3. Enter the IP address of network camera in the address field of
the web browser to view the live video.
 The default value of the IP address is “192.0.0.64”. The default
user name is “admin”, and password is “12345”.
 For accessing the network camera from different subnets, please
set the gateway for the network camera after you log in.

HIKVISION DS-2CD2012-I Specifications

General

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Product color	White
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Lens diameter	4 mm
Focus adjustment	2.0
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5 W
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	139.28 mm
Height	76.9 mm
Weight	500 g
Diameter	60.4 mm
