HIKVISION DS-2CD2012-I Quick Operation Guide

Network Bullet Camera·Quick Operation Guide
12
12
3 Setting the Network Camera over the
LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the SADP or PCNVR software to search and change
the IP of network camera.

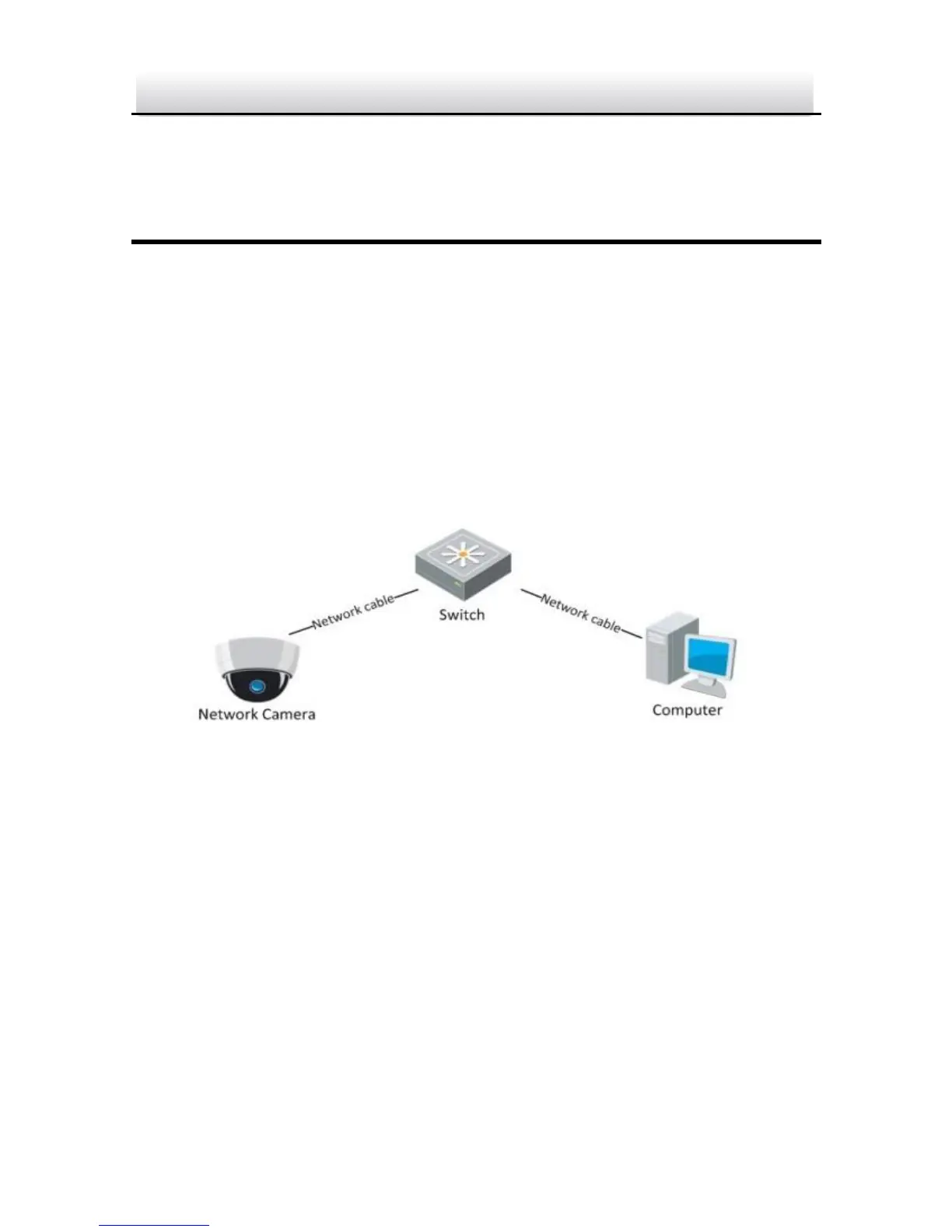

 The following figure shows the cable connection of network
camera and PC:
Wiring over LAN Figure 3-1
 Set the IP address of the camera for accessing via LAN.
Steps:
1. To get the IP address, you can choose either of the following
methods:
 Use SADP, a software tool which can automatically detect
network camera in the LAN and list the device information like IP
address, subnet mask, port number, device serial number, device
version, etc., shown in 0.

HIKVISION DS-2CD2012-I Specifications

General

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Product color	White
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Lens diameter	4 mm
Focus adjustment	2.0
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5 W
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	139.28 mm
Height	76.9 mm
Weight	500 g
Diameter	60.4 mm
