HIKVISION DS-2CD2132-I

Installation Manual of Network Camera
43
 Wall mounting:
Steps:
1. Drill the screw holes and the cable hole on the wall according to the supplied drill template.
Drill Template
1
1
22
2
2
3
3
3
3
4 4
4
4
Screw hole 3: for
Mounting Base
Hole A: for cables routed
through the ceiling
Code:190600839

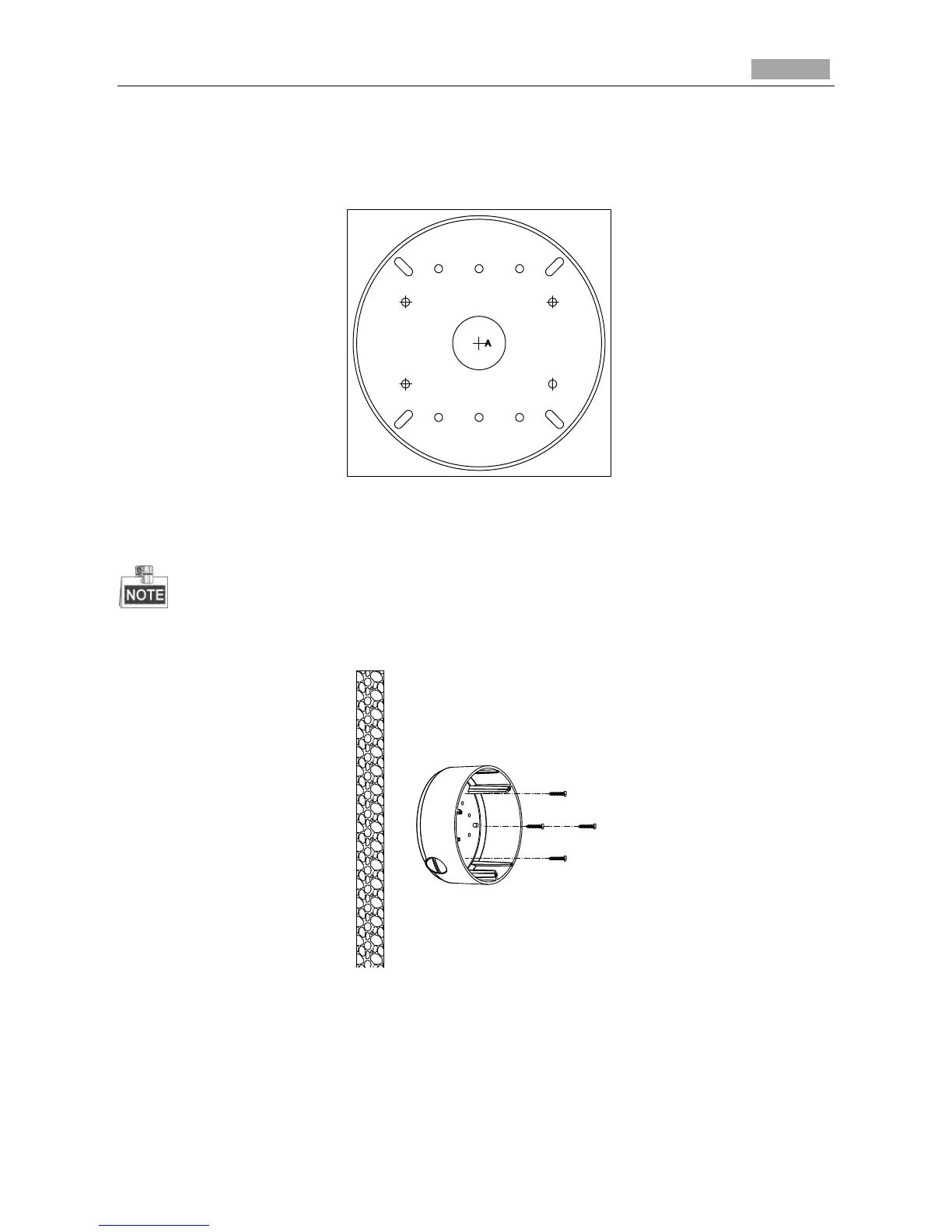

Figure 3-47 Drilling Template
2. Secure the back box to the wall with the supplied screws.
Position the side cable outlet directly below to prevent moisture from getting inside the camera.
Figure 3-48 Secure Back box
3. Loosen the set screws with the hex key (supplied) to remove the bubble; remove the black liner.
