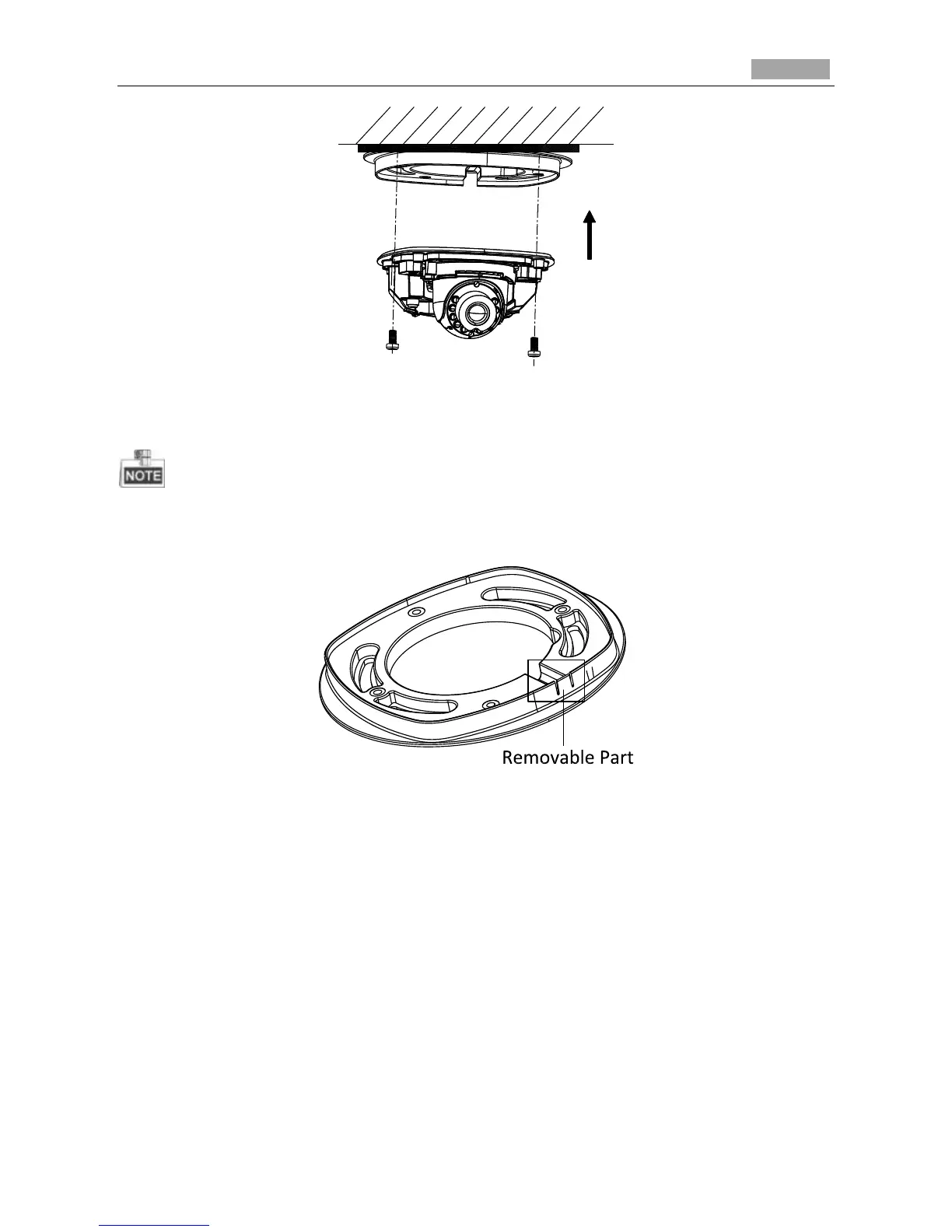

Figure 3-110 Fix the Dome Drive
5. Connect the power cable, network cable, and the alarm/audio cable.
Use a plier to remove the removable part and route the cables via side outlet (as shown in Figure
3-109) if no cable hole is drilled in step 1, and connect the corresponding cables.
Figure 3-111 Remove the Removable Part
6. View the image via the web browser.
7. Slightly loosen the hex screw beside the WPS/RESET button to adjust the surveillance angle.
8. Use the supplied adjusting tool to adjust the pan [±30°], tilt [0~80°], and rotation direction
[0~360°].
