HIKVISION DS-2CD2520F User Manual

Network Mini Dome Camera·Quick Start Guide
17
17
5. Connect the power cable, network cable, and the audio/alarm
cables.

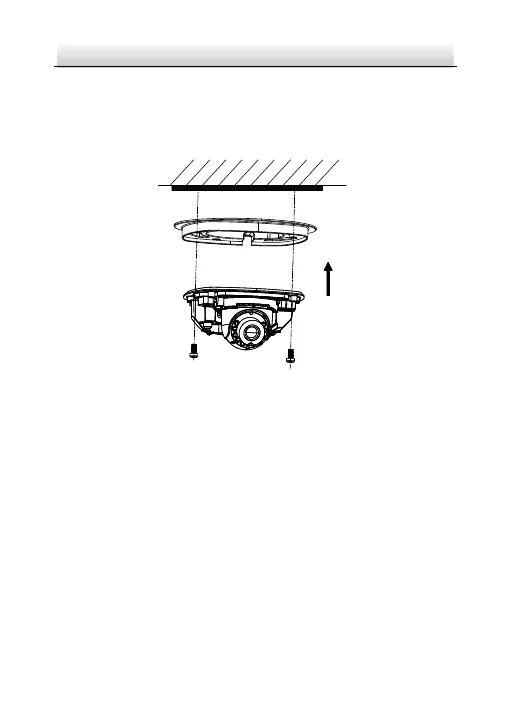

6. Fix the camera body to the ceiling with the supplied expansion
screws.
Fix the Camera Body Figure 2-4
7. View the image via the web browser.
8. Slightly loosen the hex screw beside the WPS/RESET button to
adjust the surveillance angle.
9. Use the supplied adjusting tool to adjust the pan [±30°], tilt
[0~80°], and rotation direction [0~360°].

HIKVISION DS-2CD2520F Specifications

General

Brand	HIKVISION
Model	DS-2CD2520F
Category	Security Camera
Language	English
