Network Camera User Manual
97
6. Click Save to save the settings.
10.1.3 Configuring Alarm Input
Steps:
1. Enter the Alarm Input Settings interface: Configuration > Event > Basic
Event > Alarm Input.
2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO
(Normally Open) and NC (Normally Closed). Edit the name to set a name for the
alarm input (optional).

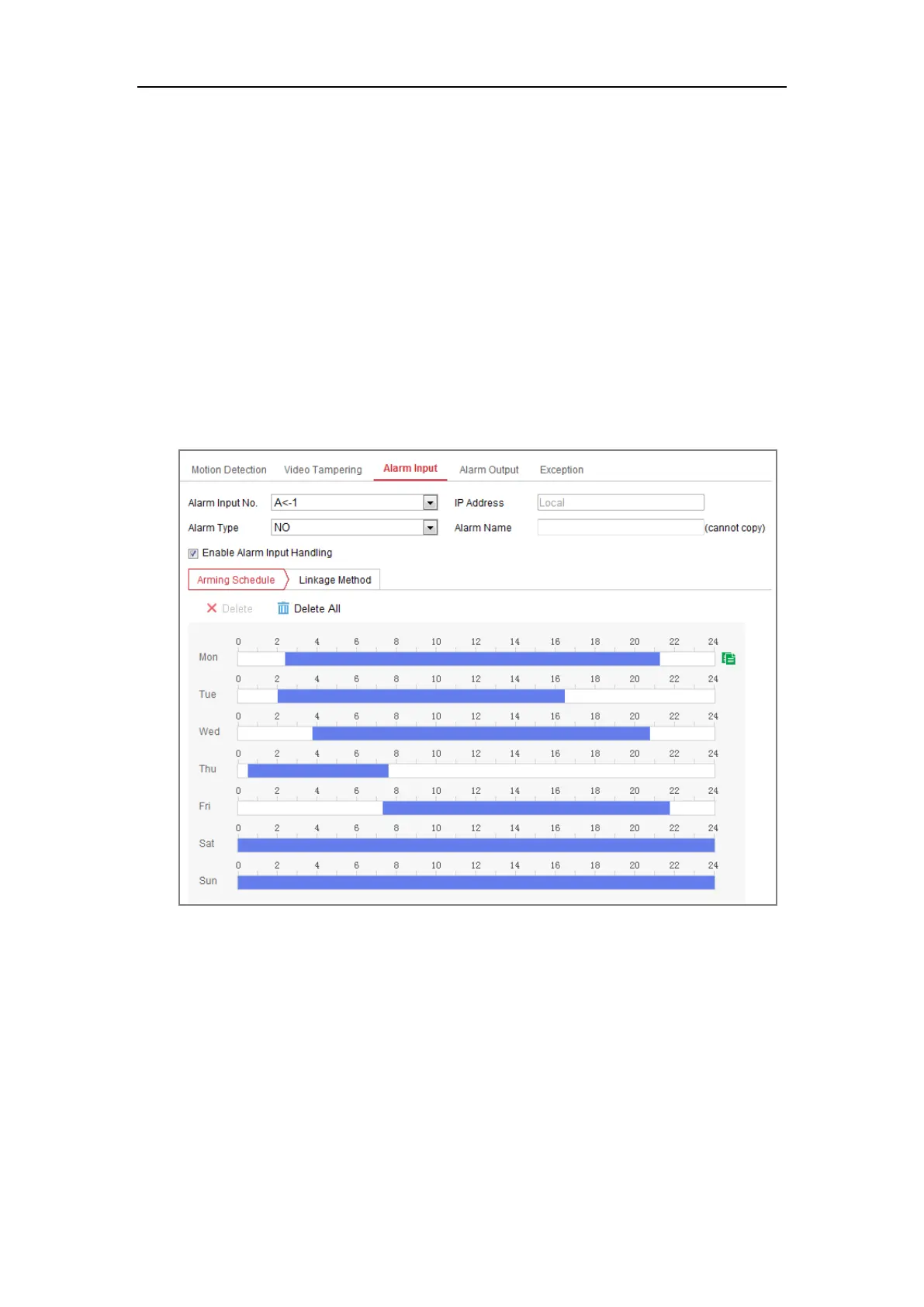

Figure 10-8 Alarm Input Settings
3. Click Arming Schedule to set the arming schedule for the alarm input. Refer to
Task 2: Set the Arming Schedule for Motion Detection in Section 10.1.1.
4. Click Linkage Method and check the checkbox to select the linkage method
taken for the alarm input. Refer to Task 3: Set the Linkage Method for Motion
Detection in Section 10.1.1.
5. You can copy your settings to other alarm inputs.
