Network Fisheye Camera·Quick Start Guide
4). Wire the plug and network cables up.
5). Fix the O-ring to the network interface of the camera, and
then connect the network cables.
6). Wrap the network interface with the main body of the
water-proof jacket, and then rotate the fix nut clockwise to
assemble it to the main body of the water-proof jacket.
Network Interface
O-ring Plug

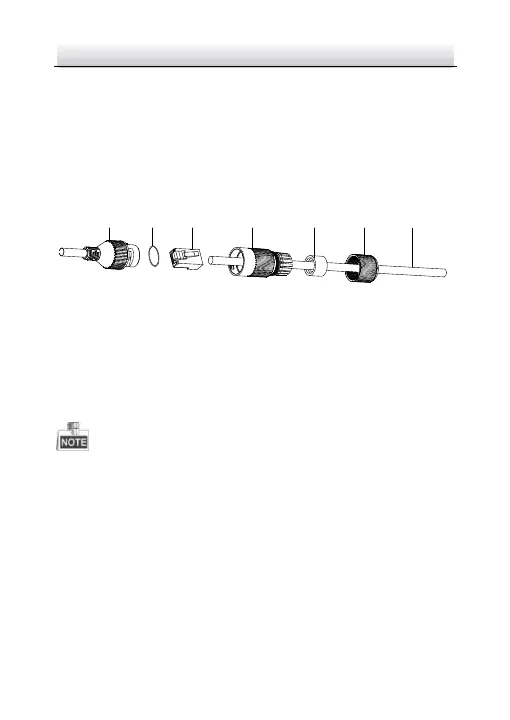

Water-proof Jacket Water-proof Ring Fix Nut Network Cable
Install Water-proof Jacket Figure 2-6
Wall Mounting with a Slant Mounting Base 2.2
The wall mounting with a slant mounting base provides a wider
surveillance view compared to the wall mounting.
You need to purchase a slant mounting base separately if this
mounting method is selected.
Steps:
1. Drill two screw holes and the cable hole according to the supplied
drill template B.
