User Manual of Digital Video Recorder
104
8.3 Detecting Video Tampering
Purpose:
Trigger alarm when the lens is covered and take alarm response action(s).
Steps:
1. Enter Video Tampering interface of Camera Management and select a channel you want to detect video
tampering.
Menu> Camera> Video Tampering Detection

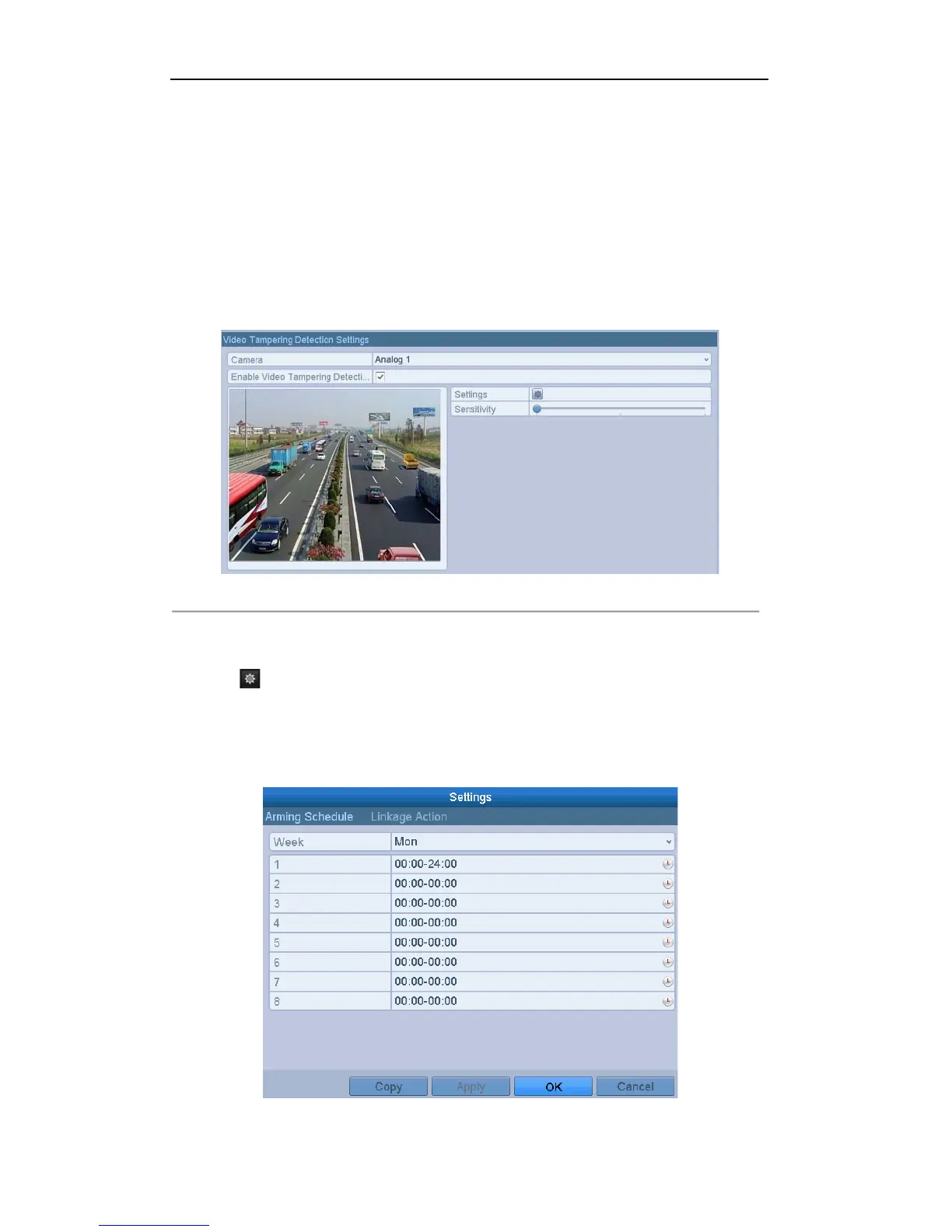

Figure 8. 8 Video Tempering Interface
2. Check the checkbox of “Enable Video Tampering”.
3. Drag the sensitivity bar and choose a proper sensitivity level.
4. Click to set handling method of video tampering. Set arming schedule and alarm response actions of
the channel.
1) Click Arming Schedule tab to set the arming schedule of response action.
2) Choose one day of a week and up to eight time periods can be set within each day.
Note: Time periods shall not be repeated or overlapped.
Figure 8. 9 Set Arming Schedule of Video Tampering
To Next Page
