User Manual of Digital Video Recorder
126
3. Select the backup device from the dropdown list of Device Name.
Note:
Click the Refresh button if the connected local backup device cannot be displayed. When it fails to
detect the backup device, please check whether it is compatible with the DVR. You can format the
backup device if the format is incorrect.

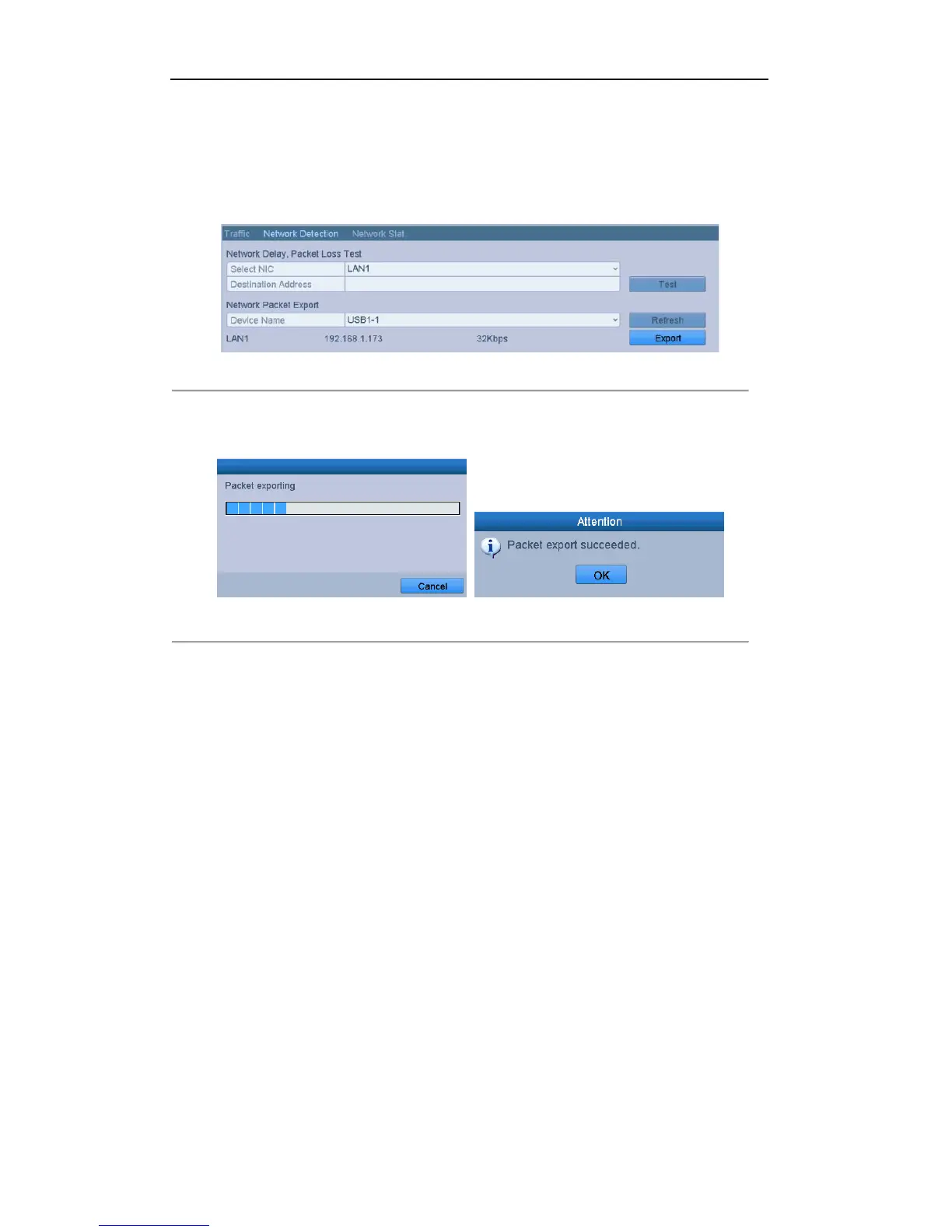

Figure 9. 35 Export Network Packet
4. Click the Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export.
Figure 9. 36 Packet Export Attention
Note: Up to 1M data can be exported each time.

HIKVISION DS-2CD7153-E Specifications

General

Type	IP security camera
PTZ control	-
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Field of view (FOV) angle	68 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.8
Fixed focal length	2.8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
