User Manual of Digital Video Recorder
133

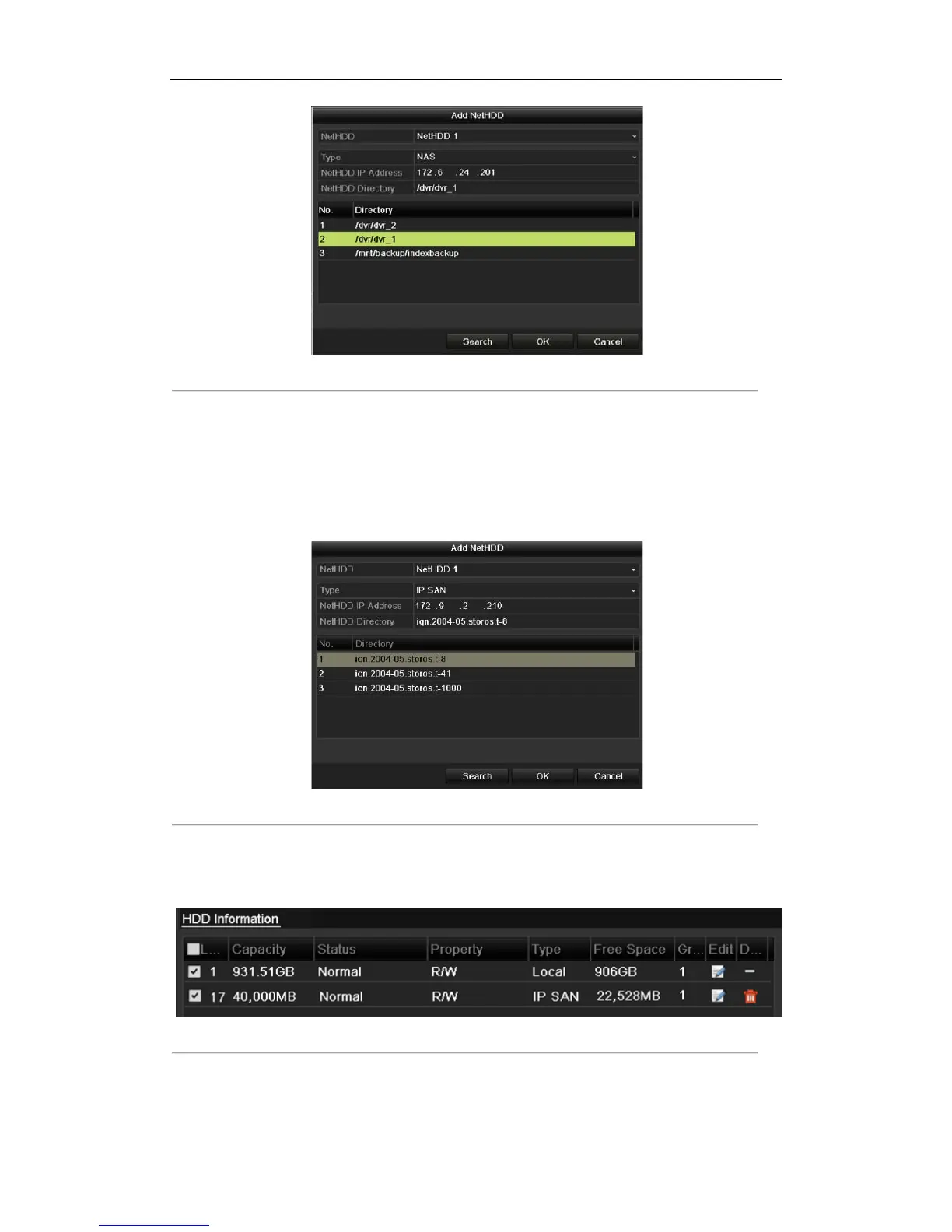

Figure 10. 8 Add NAS Disk
• Add IP SAN:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.
Note: Up to 1 IP SAN disk can be added.
Figure 10. 9 Add IP SAN Disk
5) After having successfully added the NAS or IP SAN disk, return to the HDD Information menu. The added
NetHDD will be displayed in the list.
Note:If the added NetHDD is uninitialized, please select it and click the Init button for initialization.
Figure 10. 10 Initialize Added NetHDD
