HIKVISION DS-2CD7153-E User Manual

User Manual of Digital Video Recorder
151

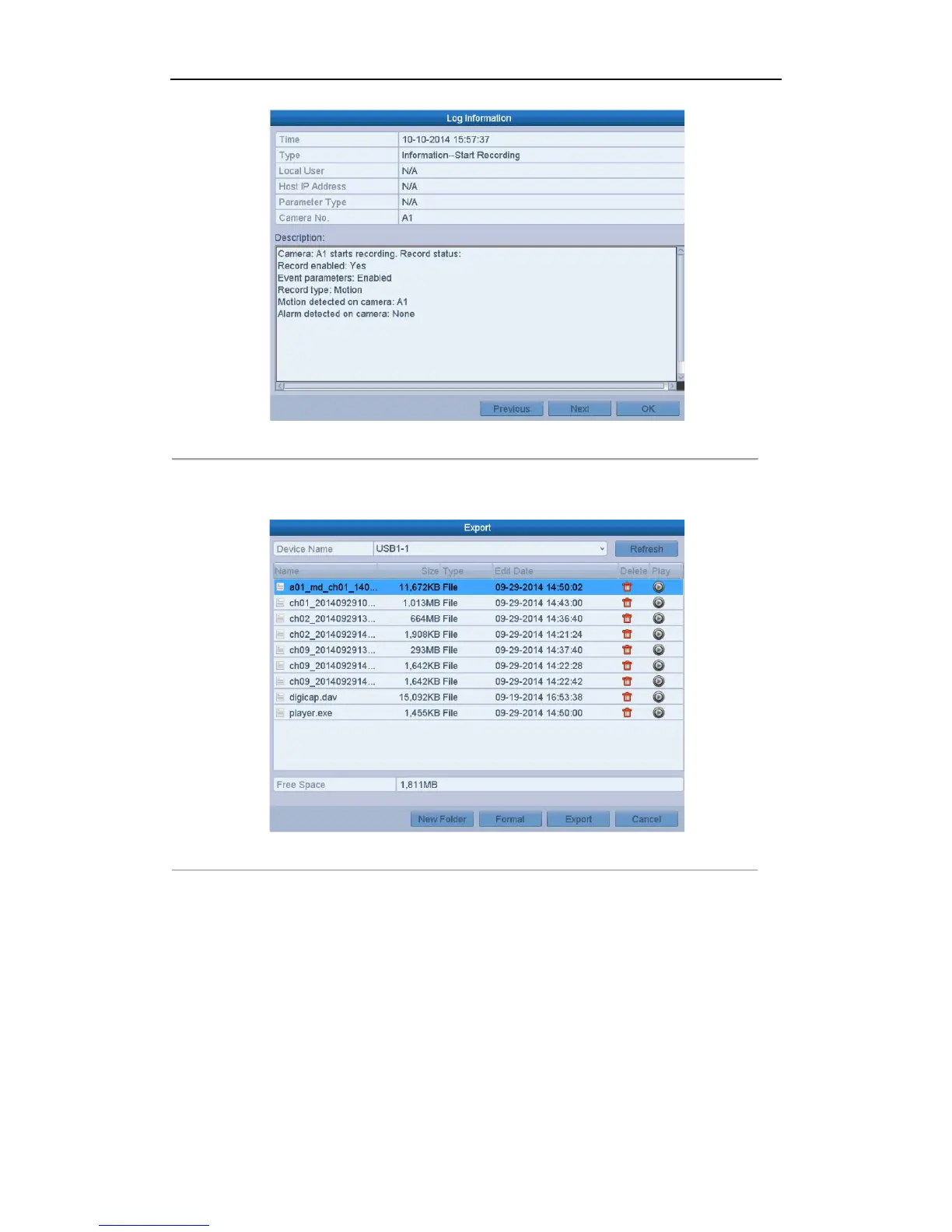

Figure 12. 9 Log Details
6. If you want to export the log files, click the Export button to enter the Export menu, as shown in Figure 12.
10.
Figure 12. 10 Export Log Files
7. Select the backup device from the dropdown list of Device Name.
8. Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the Format button
to format the backup device before log export.
Note:
 Please connect the backup device to DVR before operating log export.
 The log files exported to the backup device are named by exporting time, e.g.,
20110514124841logBack.txt.

HIKVISION DS-2CD7153-E Specifications

General

Type	IP security camera
PTZ control	-
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Field of view (FOV) angle	68 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.8
Fixed focal length	2.8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
